Battery For Jacket 11V 2200mAh (AC401)

The AC401PC-11V2200 battery is 11.1 2200mah version of AC401 rechargeable li ion rechargeable battery pack made of DLG/HYB 2200mAh 18650 battery.

The AC401PC-11V2200 battery is a PWM control battery which allow user to adjust the desirable output power rate. It comes with 4 settings(25%-50%-75%-99%) or 3 settings(33%-66%-99%) as standard version, . We can make custom setting as request.

The AC401 battery is designed for electric heated wears application.  Its size is 24*72*90mm , with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC401 battery LED light can be made to reflect the battery fuel level status by different color.

The AC401 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

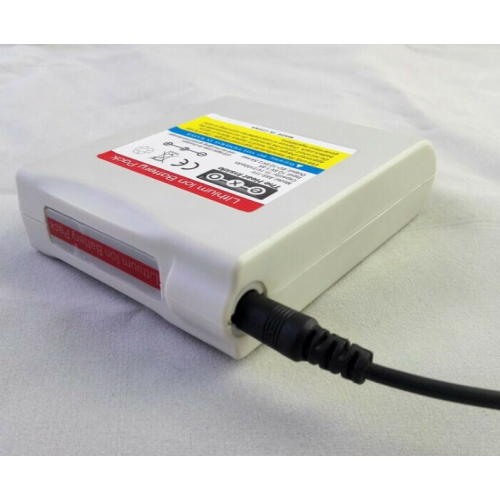

The AC401 battery has backwards DC port with aperture to hold the plug which make perfect stable connection.

By adopting different cells the capacity can be:

14.8V 2200mah/2600mah/3200mah/3400mah

11.1v 2200mah/2600mah/3200mah/3400mah

7.4V 4400mah/5200mah/6400mah/6800mah

3.7v  8800mah/10400mah/12800mah/13600mah

Battery ID: AC401PC-11V2200
Cell inside: 3pcs li ion 18650 battery

Capacity: 11.1v 2200mAh

Input:  12.6v 2A max

Output: 12.6v~9V 2.5A max, Pulse DC output with adjustable output levels, 3 settings, 4 settings or made per request.
Dimension: 24*72*90mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 175g
Function Code: PC

Application: battery operated heated jacket, heated fleece jacket,  other type electric heated wears.
