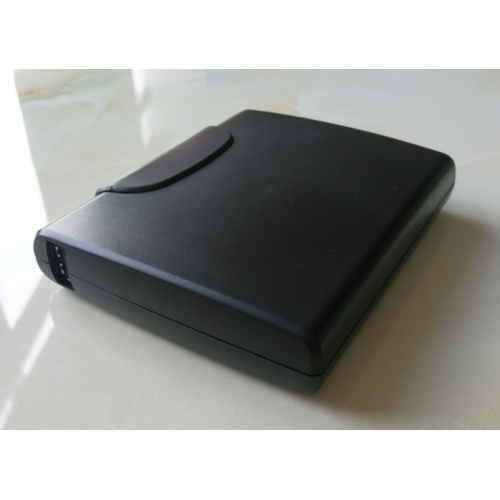

Motorcycle Heated Clothing Battery Pack 11v 4.4Ah (AC601)

The AC601PC-11V4400 is 11.1v 4400mAh version of AC601 li ion rechargeable battery pack made of 6pcs HYB 18650 battery,  DLG 18650 battery, GP 18650 battery or other optional 18650 battery, The AC601PC battery is designed for motorcycle heated gears with adjustable output settings.  The AC601 battery is designed to work with motorcycle heated clothing like Firstgear Men's 90-Watt Heated Black Jacket Liner. The AC601 battery has maximum ouput 7Amps, enough to power the motorcycle jacket. Good for back up option when rider is off bike for outdoor activities. The AC601 battery has its own adjustable settings, no need to use the motorcyle external heat controller.  Other Application: gerbing heated clothings, battery operated heated shirts,battery operated socks and gloves, battery powered coat, electric heated pajamas and other 12v heated garments.

Battery ID: AC601PC-11V4400
Cell inside: 6pcs li ion 18650 battery
Dimension: 26*101*122mm
Capacity: 11.1v 4400mAh
Input:  12.6v 5A max
Output: 12.6v~9V 5A max, PWM the Pulse DC output adjustable. 5 level for non wireless version, or 3 setting for wireless control version.

USB Output: 5.1V 2A for charging all USB gears.
Input/Ouput Terminal: 5.5*2.5mm coax type, 5.5*2.1mm, 3.5*1.35mm,
or designated connector in extension cable.
Weight: 360g
Function Code: PC (CC version also available, constant DC output no output setting, use for 12v electronic device)

Typical cell inside:

DLG NCM18650-220

HYB ICR18650NH

The AC601 battery is designed for motorcycle heated gears application with larger size and bigger capacity. It is perfect for higher power drain heated clothing like those for motorcycle riders. It is also idea back up battery for light 12v heated clothing when user stay in one place not in moving and need keep warming up.
The AC601 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.
The AC601 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC601 battery also could works as an POWER BANK, PORTABLE CHARGER for all USB gears, smart phones and iphones. With a 12.6v 5A/8A AC/DC charger the AC601 battery could recharge back almost full in about single one hour time, really saves a lot chargingtime compared with market's standard power bank which need 10-20 hours.
Typical Capacity Option:
11.1v 4400mAh/5200mAh/6400mAh/6800mAh
7.4v 8800mAh/10400mAh/12800mAh/13600mAh

The AC601 and AC603 heated motorcycle clothing battery pack.

12.6V 5A, 12.6V 8A, 16.8v 5A, 16.8V 8A AC/DC lithium ion battery charger. CB/UL/CE/FCC certificated.

Packaged in the same size box as the AC801 battery.

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
