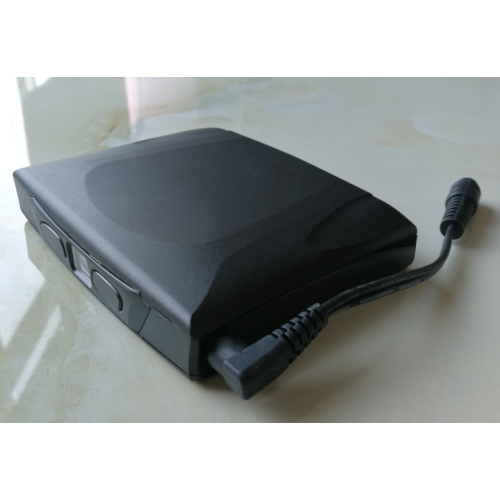

Battery Powered Blanket Powerbank 11v 6.8Ah (AC603)

The AC603CC-11V6800 is 11.1v 6800mAh version of AC603 li ion rechargeable battery pack made of 6pcs Samsung 18650 battery, LG 18650 battery, Panasonic 18650 battery or other optional 18650 battery, The AC601PC battery can work as a portable charger for mobile electronics or for heated clothing and heated blanket purpose.  The AC603NC works with Milwaukee heated jacket as well like Milwaukee heated Hoodie M12 12V Lithium-Ion Heated Jacket KIT Front and Back Heat Zones. The AC603NC battery with 6.8Ah capacity would run Up to 20 hours which Reducing the need for bulky layers. It products utilize carbon fiber heating elements to generate and trap heat across core body areas with Adjustable heat technology to changing conditions by increasing or decreasing the heat level with the touch of a button. For people who stay working outside they can also go our bigger battery the AD601 12V 10AH li ion battery pack, a truely great back up battery for almost all 12v motorcycle heated clothing.   Other Application: heated stadium blanket, plush heated blanket, heated cat blanket, industrial heating blankets, car battery blanket, wireless electric blanket, electric warm blanket and other 12v heated wears.

Battery ID: AC603CC-11V6800
Cell inside: 6pcs li ion 18650 battery
Dimension: 25*95*120mm
Capacity: 11.1v 6800mAh
Input:  12.6v 5A max
Output: 12.6v~9V 5A max, constant DC output, no adjustable level. To get adjustable output levels please use with our T21sicpu silicon pushbutton heat controller.
USB Output: 5.1V 2A for charging all USB gears.
Input/Ouput Terminal: 5.5*2.5mm coax type, 5.5*2.1mm, 3.5*1.35mm,
or designated connector in extension cable.
Weight: 351g
Function Code: CC (PC version also available, Pulse DC output with adjustable output settings.)

Typical cells option:

Panasonic NCR18650B 3400mAh

Panasonic NCR18650GA 3500mAh

SAMSUNG INR18650-35E 3400mAh

LG INR18650F1L 3350mAh

LG INR18650MJ1 3500mAh

The AC603 battery is designed for motorcycle heated clothing application with larger size and bigger capacity. It is perfect for higher power drain heated clothing like those for motorcycle riders. It is also idea back up battery for light 7v/12V heated clothing when user stay in one place not in moving and need keep warming up.

The AC603 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.
The AC603 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC603 battery also could works as an POWER BANK, PORTABLE CHARGER for all USB gears, smart phones and iphones. With a 12.6v 5A/8A AC/DC charger the AC601 battery could recharge back almost full in about single one hour time, really saves a lot chargingtime compared with market's standard power bank which need 10-20 hours.
Typical Capacity Option:
11.1v 4400mAh/5200mAh/6400mAh/6800mAh
7.4v 6600mAh/7800mAh/9600mAh/10200mAh

AC603 heated clothing battery design.

The highest recharging rate on standard power bank is 9V*2A=18W
This Ac603 gets 12.6v*5A=63W, 3 times more then those highest speed.
The normal recharging rate on standard power bank is merely 5V*1A=5W,
Wasting too much time waiting the power bank recharge back itself.

AD601 battery is even bigger battery same function as AC601,
AD601 has 11v 10Ah capacity, equal with an 30Ah power bank.
Good for electric blanket for car, heated blanket queen, battery operated blanket, king electric blanket,
battery powered heated blanket, heated dog blanket, 12v heated blanket,
battery blanket, twin heated blanket, battery powered electric blanket

8.4v 5A, 8.4v 8A, 12.6V 5A, 12.6V 8A, 16.8v 5A, 16.8V 8A AC/DC lithium ion battery charger. CB/UL/CE/FCC certificated.

AC603 battery LED screen display introduction.

Pairing the remoter with battery.

For AC603 CC version (constant DC output, no adjustable output settings)
to get the adjustable output settings, users can use our external heat controller.
We have silicon pushbutton heat controller T21sicpu,
12v 5A two way heat controller L8W2,
12V 16A single way heat controller L8W1,
12V 16A two way heat controller L16W2.

The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.

12V 16A single way heat controller L8W1, idea for heated jacket, motorcycle heated clothing, portable heated blanket.

 12v 5A two way heat controller L8W2, good for motorcycle heated gloves.

12V 16A two way heat controller L16W2. Idea for motorcycle heated clothings, heated pants, heated jacket, heated sleepers.

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.

Packaged in the same size box as the AC801 battery.
