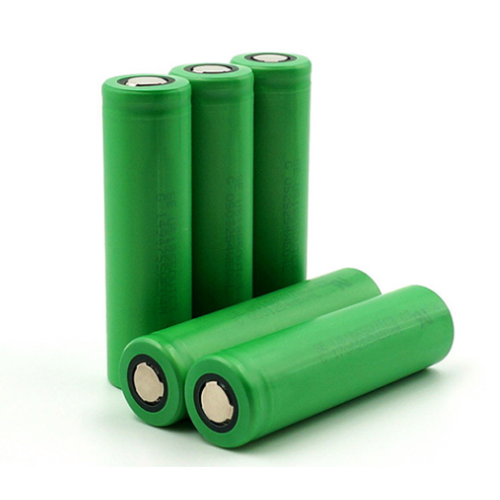

Sony US18650VTC3 18650 Battery
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
- Port:
- Hong Kong, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| HS Code: | 85076000 |
| Transportation: | Ocean,Air |
| Port: | Hong Kong,Shenzhen |
The Sony US18650VTC3 cell is high power 18650 battery cells with 30A Max. continuous discharge current.
The Sony VTCx battery is rated 30A discharge max, but in the condition that the cell has outside protection PCB installed to make sure safety issue. For single cell unprotected application there will be some risk there if you go 30A discharge current.
VTC3 1600mAh 30A discharge
VTC4 2100mah 30A discharge
VTC5 2600mah 25A discharge
VTC6 3000mah 30A discharge
VTC5A 2600mah 35A discharge
VTC6A 3000mah 35A discharge
Nominal Specifications
Sony US18650VTC3 1600 mAh High Discharge Flat Top
Specifications:
Nominal Capacity: 1600 mAh
Minimum Capacity: 1500 mAh
Nominal Voltage: 3.6V
Discharge End Voltage: 2.5V
Standard Charging Current: 1.5A
Charging Voltage: 4.20+-0.05V
Max. Continuous Discharging Current: 30A
Internal Resistance: 20 milli-ohms
Dimensions:
65.00mm (L) x 18.20 mm (D)
Weight: 45.1g
