Heated Sock Battery 3.7V 3400mAh Battery (AC102)

The AC102NS-3400 is a 3400mAh version of AC102 battery, using Samsung/LG/Panasonic cells.

Cell options:

Panasonic NCR18650B 3400mAh
Panasonic NCR18650GA 3500mAh
SAMSUNG INR18650-35E 3400mAh
LG INR18650F1L 3350mAh
LG INR18650MJ1 3500mAh

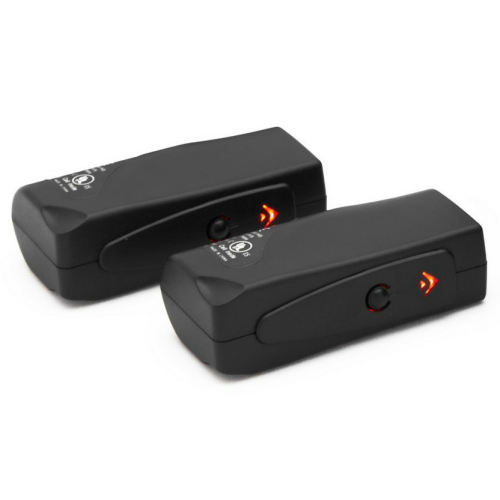

The AC102 battery is designed for electric heated socks, electric heated insole, electric heated glove insole application.  It has small size 22*33*70mm, with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC102 battery LED light can be made to reflect the battery fuel level status by different color.

The AC102 battery can be made to have different output mode: Constant DC type (4.2V~3V), Pulse DC type (adjustable pulse settings), or two both.

By adopting different cells the capacity can be 2000mah/2200mah/2600mah/3000mah/3200mah/3400mah/3500mah.

Battery Case ID: AC102NS-3400
Cell inside: 1pcs li ion 18650 cell
Capacity: 3400mah
Dimension: 22*33*70mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or other type by extension cable.
Weight: 60g
Function Code:
*ON/OFF switch
*LED light indicator
*No battery fuel level
*No output settings

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
