Heated Sweater Battery 3.7V 13600mAh (AC401)

The AC401NC-3V13600 battery is 3.7v 13600mah version of AC401 rechargeable li ion battery pack by using Samsung/LG/Panasonic 3400mAh/3500mAh 18650 battery.
Cell options:
Panasonic NCR18650B 3400mAh
Panasonic NCR18650GA 3500mAh
SAMSUNG INR18650-35E 3400mAh
LG INR18650F1L 3350mAh
LG INR18650MJ1 3500mAh

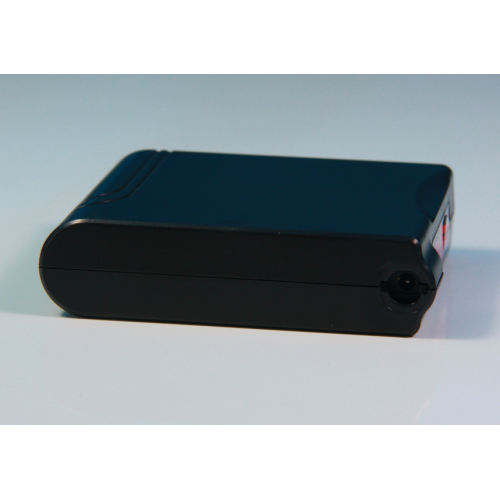

The AC401 battery is designed for electric heated wears application.  It's size is 24*72*90mm , with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC401 battery LED light can be made to reflect the battery fuel level status by different color.

The AC401 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

The AC401 battery has backwards DC port with aperture to hold the plug which make perfect stable connection.

By adopting different cells the capacity can be:

14.8V 2200mah/2600mah/3200mah/3400mah

11.1v 2200mah/2600mah/3200mah/3400mah

7.4V 4400mah/5200mah/6400mah/6800mah

3.7v  8800mah/10400mah/12800mah/13600mah

Battery ID: AC401NC-3v13600
Cell inside: 4pcs li ion 18650 cell (or 3 cells for 11.1v)

Capacity: 3.7v 13600mAh

Input:  4.2v 3.5A max

Output: 4.2v~3V 3.5A max Constant DC output only, not adjustable for this specified mode.
Dimension: 24*72*90mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 225g
Function Code: NC, NS

Application: womens heated jacket,heated hat,heated motorcycle vest,heated jumper, other type electric heated wears.
