Electric Gloves Battery 3V 7V 2200mAh~7000mAh (AC254)
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |

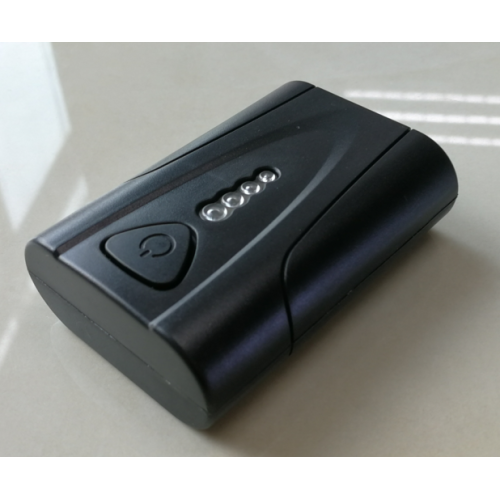

The AC254 battery is designed for electric heated wears application. It has most compact size 22*49*71mm , with an ON/OFF tactile switch and 4 LED lights indicator, a 3.5*1.35mm coax type socket connector. Especially good for heated glove application.
The AC254 battery LED lights can be made to reflect the battery fuel level status by lighting up different number of lights.
The AC254 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both. Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC224 battery is perfect for heated gloves, battery heated gloves, heated glove liners and other types of electric heated gloves.
Typical Capacity Option:
7.4v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 4400mAh/5200mAh/6400mAh/6800mAh
Battery Case ID: AC254(A4LX)
Cell inside: 2pcs li ion 18650 battery
Dimension: 22*49*71mm
Capacity: 3.7v 6800mAh
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 116g
Function Code: NS, CC, PC, DM
Application: warm clothes, heated sweatshirt, warm jackets,
AC254 battery design profile.
Other similar batteries for heating clothing application.
Battery package: small blister, large blister kit, box, bulk.
The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.
