Heated Fingerless Gloves Battery 3V 7V 2200~7000mAh (AC244)

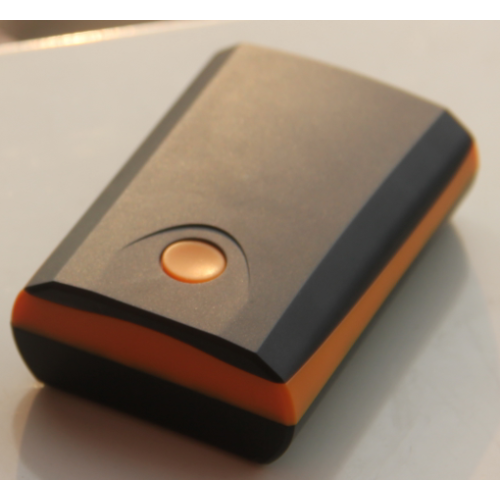

The AC244 battery is designed for electric heated wears application.  It has most compact size 23*51*71mm , with an ON/OFF tactile switch and 4 LED lights indicator, a 3.5*1.35mm coax type socket connector or NDSL 2P flat connector.

The AC244 battery LED lights can be made to reflect the battery fuel level status by lighting up different number of lights.
The AC244 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC224 battery is perfect for heated gloves, battery heated gloves, heated glove liners and other types of electric heated gloves.
Typical Capacity Option:
7.4v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 4400mAh/5200mAh/6400mAh/6800mAh

Battery Case ID: AC244
Cell inside: 2pcs li ion 18650 battery
Dimension: 23*51*71mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or NDSL 2P flat connector,
or designated connector in extension cable.
Weight: 113g
Function Code: NS, CC, PC, DM
Application: heated jacket,  heated jacket womens,  heated hoodie,

Battery package types.

Other similar batteries with same function.

The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.
