Electric Jacket Battery 7.4V 3200mAh (AC214)

The AC214PC-7V3200 is 7.4V 3200mAh version of AC214 battery by using DLG/HYB 3200mAh cell or Panasonic 3200mAh cell, real capacity 3100mAh~3200mAh. The AC214PC is a pulse output battery with adjustable output settings. This is the first generation of heated clothing battery produced more then 10years by now.

Cell options:

PANASONIC NCR18650BD 3200mAh
PANASONIC NCR18650BM 3200mAh
HYB 18650cell 3200mAh
DLG 18650cell 3200mAh

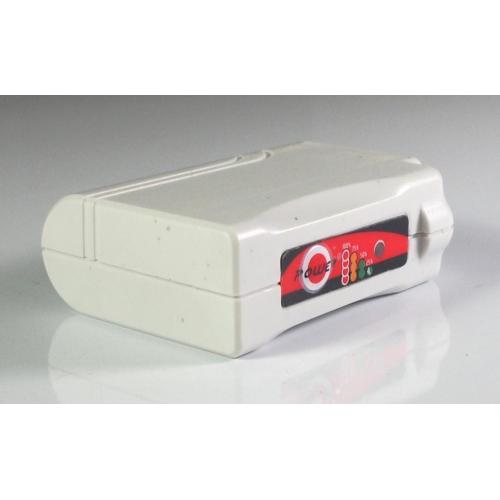

The AC214 battery is designed for electric heated vest, heated jacket, heated hand warmer, heated belt application.  It has small size 24*54*74mm, with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC214 battery LED light can be made to reflect the battery fuel level status by different color.

The AC214 battery can be made to have different output mode: Constant DC type (8.4v~6v), Pulse DC type (adjustable pulse settings), or two both.

By adopting different cells the capacity can be 7.4v 2000mah/2200mah/2600mah/3000mah/3200mah/3400mah/3500mah, or 3.7v 4000mah/4400mah/5200mah/6000mah/6400mah/6800mah/7000mah

Battery Mode: AC214PC-7V3200
Cell inside: 2pcs li ion 18650 cell
Dimension: 24*54*72mm

Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.

Input: 8.4V 2.5A max

Output: 8.4V~6V 2.5A max
Weight: 119g

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
