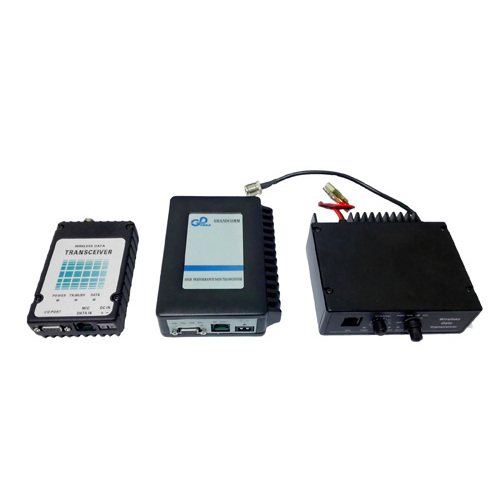

GDMD4F is a radio modem at air rate of 19200bps with 4-FSK modulation scheme. It is a state-of-the-art design giving the customer data communications on VHF and UHF bands in narrow-band wireless systems.
GDMD4F radio modem is enclosed in an aluminum housing. The networks using the radio modem are flexible, easy to expand and they can cover a wide variety of solutions from simple point-to-point connections to large point-to-multipoint networks consisting of hundreds of nodes. Setting up a local data transfer network is quick and cost effective.
Specifications
1. General
(1) Operating frequency range: 450to 470 MHz
(2) Channel spacing: 25 KHz or 12.5KHz
(3) Number of channels: 60
(4) ANTENNA IMPEDANCE: 50 Ohm unbalanced
(5) OPERATING TEMPERATURE: -40 to +70℃
(6) FREQUENCY STABILITY TCXO: ±2.5ppm
(7)OPERATIONVOLTAGERANGE: 12V DC ( 11Vdc to 14.5V DC)
(8) STAND-BY CURRENT: 110mA
2. TRANSMITTER
(1) RF OUTPUT POWER: 1.5W/5W /8W/10W/ 25W programmable
(2) OUTPUT 2ND HARMONIC: less than –65dB
(3) SPURIOUS EMISSIONS: less than 0.25uW (30MHz to 1GHz)
(4) MAXIMUM FREQUENCY DEVIATION: ±5KHz
(5) REFERENCE OSCILLATOR: TCXO
(6) RF IMPEDANCE: 50 Ohm unbalanced
(7) CURRENT DRAIN: 6.0A @25W output power
(8) FM HUM AND NOISE RATIO: greater than –50dB
(9) AUDIO FREQUENCY DISTORTION: 3% 1KHz for 3KHz deviation
(10) AUDIO FREQUENCY RANGE: 300Hz to 3400Hz ±2dB
(11) TRANSMITTER ATTACK TIME: less than 7ms
2. RECEIVER
(1) TYPE OF RECEIVER:Crystalcontrolled double, super heterodyne
(2) INTERMEDIATE frequency: 45MHz(1st IF), 455KHz(2nd IF)
(3) SENSITIVITY: Better than 0.2uV @12dB SINAD
(4) SQUELCH SENSITIVITY: 0.1uV to 1uV programmable
(5) ADJACENT CHANNEL SELECTIVITY: greater than –70dB
(6) SPURIOUS AND IMAGE REJECTION: greater than –65dB
(7) OUTPUT AUDIO DISTORTION: 3% at 1KHz for ±5KHz deviation
(8) FM HUM AND NOISE RATIO: greater than 40dB
3. Data and Interface
(1) MODULATION: 4-FSK
(2) AIR RATE: 19200bps programmable
(3) INTERFACE BAUD RATE: 600 - 38400 bps programmable
(4) INTERFACE DATA BIT: 8 / 7 bit
(5) INTERFACE PARITY BIT: None / Even / Odd
(6) INTERFACE STOP BIT: 1 bit
