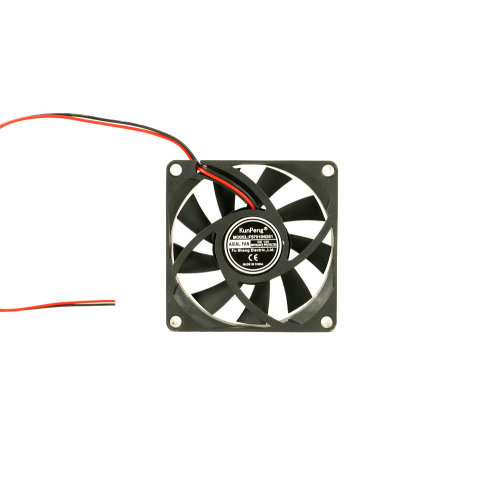

70x70x15mm Electric DC Cooling Fan for Sale
- Incoterm:
- FOB
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 4000sets/month |
| Supply Ability: | 4000sets/month |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Our company is professional manufacturer of DC/AC/EC fan.The cooling fan includes DC cooling fan, AC fan, axial flow fan, internal DC fanadopts double ball bearing and oil bearing structure, quality, DC cooling fan with low loss, high efficiency, high power factor, good speed performance, simple control, inverter capacity the characteristics of the low and widely used. The direct current cooling fan is widely applied to equipment, instruments and machines which need ventilation and heat dissipation.
Production description
Parameter:
Frame:Thermal Plastic,UL 94V-0
Impeller:Thermal Plastic,UL 94V-0
Lead Wire:AWG#24 UL1007(Optional)
(+):Red(-):Black
Insulation Resistance:
Above 10M Between Lead wire and Frame DC500V
Life Expectancy: Ball bearing:over 50000hr(At 25 degree)
Sleeve bearing:over 30000hr(At 25 degree)
Specification:
|
Model |
Bearing |
Rated voltage(v) |
Rated current (A) |
Rated |
Nominal speed (RPM) |
Air flow (CFM)/(m^3/min) |
Air pressure
|
Noise (dB) |
Weight(g) |
||
|
FS7015HDA12B(S) |
sleeve/ball |
12 |
0.35 |
4.20 |
4200 |
33.52 |
0.94 |
3.33 |
0.13 |
40.0 |
45 |
|
FS7015MDA12B(S) |
sleeve/ball |
12 |
0.25 |
3.00 |
3600 |
28.85 |
0.81 |
3.02 |
0.12 |
35.0 |
|
|
FS7015LDA12B(S) |
sleeve/ball |
12 |
0.16 |
1.92 |
3000 |
24.80 |
0.69 |
2.50 |
0.09 |
30.0 |
|
|
FS7015HDA24B(S) |
sleeve/ball |
24 |
0.25 |
6.00 |
4200 |
33.52 |
0.94 |
3.33 |
0.13 |
40.0 |
|
|
FS7015MDA24B(S) |
sleeve/ball |
24 |
0.16 |
3.84 |
3600 |
28.85 |
0.81 |
3.02 |
0.12 |
35.0 |
|
|
FS7015LDA24B(S) |
sleeve/ball |
24 |
0.12 |
2.88 |
3000 |
24.80 |
0.69 |
2.50 |
0.09 |
30.0 |
|
Certification
Our company has been ISO9001-2000 international quality
management system certification as the purpose,
now introduced to the environmental management system.
The products are certified by many countries and regions.
Such as: UL, CCC, TUV, CE and so on.
ABOUT US
Shenzhen Fu Sheng Electric Co.,LTD.is professional manufacturer of DC/AC/EC containing brush less axial compressor,cross current flow,centrifugal cooling fan,it is set up in October 2004 located in the beautiful scenery and developed economy,Shenzhen City,Guangdong Province.We have been working hard in the industry field and the enterprise has been a considerable scale.Because of the advantages of the business philosophy,has been a good product price and quality service to win the market,To win the trust of customers.Our products are widely used in IT field,Sports equipment,ventilation equipment,welding equipment, power systems,medical electronic equipment,machinery and equipment etc.
WHY CHOOSE US?
1.Product diversification, DC, AC, EC full series of brushless axial flow, cross flow, centrifugal fan.
2.14 years of production experience, to provide you with quality assurance.
3.Professional and technical personnel and advanced production equipment.
4.7x24 hours service online, welcome to consult, to provide you with high quality service.
5.Protection of your sales area,ideas of desigen and all your private information.
Packing and Shipment
2.You can choose sea, air, land, and international express, or the mode of transportation according to the customer's request.
3.The delivery time is 7~10 days, according to the quantity of the goods.
