For clean room PVC high speed rolling door

A PVC high-speed door is a type of industrial Roller Shutter Grill Door that is designed to open and close quickly. It is made from PVC (polyvinyl chloride) material, which is durable, flexible, and resistant to impact and abrasion. These doors are commonly used in commercial and industrial settings where there is a need for frequent and rapid access, such as warehouses, manufacturing facilities, and loading docks. The high-speed operation of these doors helps to improve productivity, energy efficiency, and safety by minimizing the time it takes for vehicles and personnel to move in and out of the area.
PVC high speed door is a kind of common soft curtain fast rolling door. Its structure is relatively simple compared with other type rapid doors. The common pvc fast door curtain is made of a single layer of 0.8mm/1.2mm industrial fabric, and the running speed can reach 1.5m/s, due to the influence of the curtain material, PVC fast doors are generally not used alone for exterior door, and are mostly used for sealing off the fast circulation channels.

Features and benefits:

· Excellent quality, reliability and safety, with CE certificate.

· Great versatility, flexibility and structural strength

· Reduced overall dimensions, thanks to the curved profile of our roll-up doors

· Noiseless opening and closing system

· High thermal conductivity

· Wind resistance

· Designed to solve different industrial logistics problems

· Simple design

· No extraordinary maintenance required, just the ordinary maintenance required by the rules in force

· Easy to install

· Easy and fast handling operations (materials and people)

· High-quality packaging with the use of polystyrene boxes

· Compliance with technical standards of EU

   Branding on customers' name.

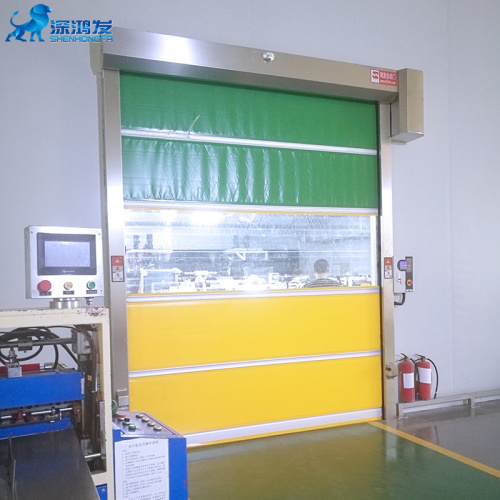

PVC HIGH SPEED DOOR PICTURES

Operation methods:

1. Radar control (Belgium brand): according to customer requirements, it can be installed at any position on both sides of the door or on the top of the door. The radar range can be adjusted as needed. When forklifts, cars, people, manual forklifts, etc. enter the radar area, the fast rolling door automatically opens quickly, shortening your entry and exit time, and is safe, fast, convenient, and reliable.
2. Double-side vehicle loop sensor control (Switzerland brand): according to customer requirements, geomagnetic loop lines are buried in the ground before and behind the fast rolling door, reducing the number of frequent openings of the Roller Shutter Door after being sensed to people and other objects, thereby increasing Improve the life of the fast rolling door and better protect the environmental sanitation of the workshop.
3. Interlocking function: it is mostly used in production workshops with high environmental requirements. This method is composed of two-layer fast doors. When the first door is opened, the second door is closed. When the first door is completely closed, The second door can be opened.
4. Airbags (Switzerland brand): a pressure sensor protection switch is installed at the bottom of the curtain. When the door body is lowered, it can automatically rebound when the door body is lowered under a force of about 2 kg, which provides a good protection for people and objects.
5. Remote control: within 50m of remote control, 2 remote controls are standard.
6. Rope switch: a manual switch is installed above the door head, and the draw rope hangs on one side of the door. When a person passes in, the door is opened by pulling the rope.
7. Push-button type: also known as manual push-button type. It is the most versatile way to open the door quickly. It can be opened by pressing the open button when people enter and exit.
