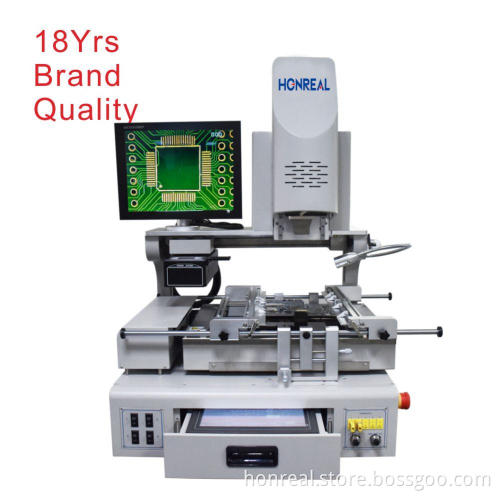

High quality SMD rework station

Features:

1. Hot air heater head and mounting head are designed 2 in 1, with auto pick-up,auto solder,auto desolder and auto placement function.

2. Three heaters( top/bottom hot air heater, bottom IR heater) heating independently, with auto protection function while heating abnormally ,time and temperature can be displayed digitally on touch screen;

3. Top heating system and cooling system are designed 2 in 1,( 55108018,which is our patent design), temperature controlled accurately and evenly.

4. Bottom heater is IR wave gilding heater plate, with high temperature glass, temperature increasing and decreasing rapidly;

5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed;

6. Megapixel HD Color optical camera system with functions of split vision, zoom in/out and micro-adjust, equipped with aberrationdetection device; with auto focus and software operation function,

7. Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table

  flexibly.

8. Embedded industrial computer, touch screen interface, PLC control, real-time temperature curve display, can analyze the practically-tested profile, and compare them with the history saved profiles;

9. Built-in vacuum pump,pick-up nozzle 360°rotated by motor.

12. 8 segments of temperature control setting, profile saving unlimited.

10. Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range ;

11.With different alloy nozzles,using high-temperature magnet to locate,easy to replace and able to locate in any angle.

Technical parameter:

Details:

Shenzhen Honreal Technology Co.,Ltd  is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents
