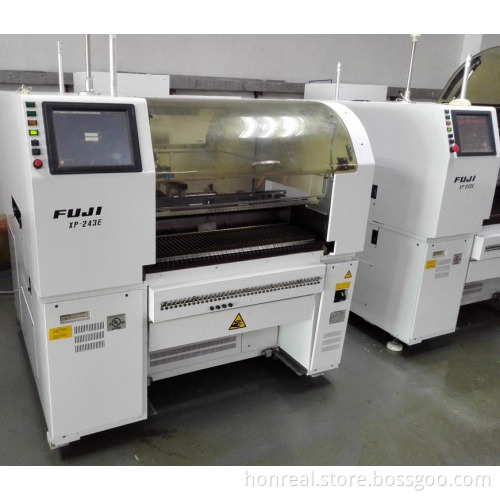

Fuji XP141E XP142 XP143E
-
$10000.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Specifications
*High speed placement at 0.165 sec / comp ( 21,800 cph)
*On the fly vision
*Fuji’s proprietary Multi-step (MS) vision processing Algorithm
*Auto calibration
*PCB Dimensions:
Max: 508mm x 457mm Min: 80mm x 50mm
Thickness: 0.5mm x 4.0mm
*Component Capacity:
Up To 100 types (using 8 mm tape feeders.)
*PCB loading Time:
4.2 sec.
*Placing accuracy
Chips: ±0.05mm(3 Sigma),±0.1mm(6 Sigma)
QFPs: ±0.03mm(3 Sigma),±0.06mm(6 Sigma)
*Applicable Components:
0603 (0201) to 20 x 20 mm, Max height 6.0 mm
Power*
3-phase 4 kVA 208-480VAC
Air Supply 0.49 MPa 80 NL / min
*Machine Dimensions:
L: 1500 mm W: 1300 (2143) mm
(W: including MFU) H: 1409 mm
(H: excluding signal tower)
*Weight:
Main Body: Approx. 1.800 kg
*On the fly vision
*Fuji’s proprietary Multi-step (MS) vision processing Algorithm
*Auto calibration
*PCB Dimensions:
Max: 508mm x 457mm Min: 80mm x 50mm
Thickness: 0.5mm x 4.0mm
*Component Capacity:
Up To 100 types (using 8 mm tape feeders.)
*PCB loading Time:
4.2 sec.
*Placing accuracy
Chips: ±0.05mm(3 Sigma),±0.1mm(6 Sigma)
QFPs: ±0.03mm(3 Sigma),±0.06mm(6 Sigma)
*Applicable Components:
0603 (0201) to 20 x 20 mm, Max height 6.0 mm
Power*
3-phase 4 kVA 208-480VAC
Air Supply 0.49 MPa 80 NL / min
*Machine Dimensions:
L: 1500 mm W: 1300 (2143) mm
(W: including MFU) H: 1409 mm
(H: excluding signal tower)
*Weight:
Main Body: Approx. 1.800 kg
