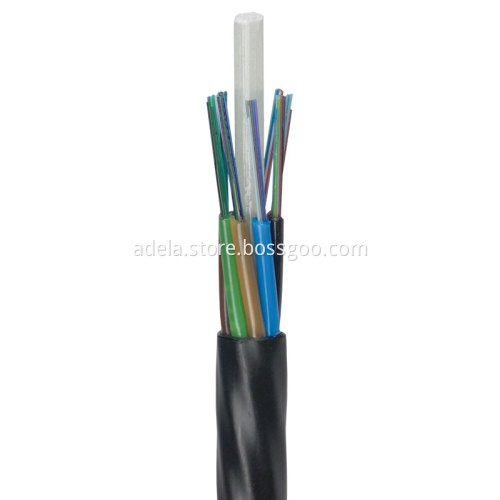

2-72 core G657A air blowing cable PE sheath
Your message must be between 20 to 2000 characters
Contact NowIt blowed speed fast, blowing distance is long, safe and high cost performance.
Technical Parameters:
Construction of optical fiber cable.
|
Items |
Description |
|
|
Number of fiber |
12 |
72 |
|
Number of loose tube |
1 |
6 |
|
Number of fibers per tube |
12 |
12 |
|
Number of fillers |
5 |
0 |
|
Loose tube OD |
1.45±0.1 |
1.45±0.1 |
|
FRP OD |
1.6 |
1.6 |
|
Jacket thickness |
0.5 |
0.5 |
|
Jacket |
HDPE |
HDPE |
|
Color of Jacket |
Black |
Black |
|
Cable diameter |
5.4 |
5.4 |
|
Approx. weight cable Kg/Km |
26 |
29 |
|
Apply microtubules |
10/8 |
10/8 |
Mechanical and environmental data
|
Temperature range |
Storage/Shipping temperature range Operating temperature range |
℃ |
-40℃ ~ +70℃ |
|
Min. Bending Radius (mm) |
Dynamic |
mm |
20D |
|
Static |
mm |
10D |
|
|
Max. Tension (N) |
Short-term |
N |
500 |
|
Long-term |
N |
150 |
|
|
Max. Crushing Resistance (N/100mm²) |
Short-term |
N/100mm² |
500 |
Optical Performances:
|
Optical Transmission Performance |
Single mode 1310/1550nm |
Multimode 850/1300nm |
|||
|
9/125μm (OS2) |
62.5/125μm (OM1) |
50/125 μm (OM2) |
50/125 μm (OM3) |
50/125 μm (OM4) |
|
|
Max. Attenuation(dB/km) |
0.4/0.25 |
3.5/1.5 |
3.5/1.5 |
3.5/1.5 |
3.5/1.5 |
|
Typ. Attenuation(dB/km) |
0.33/0.19 |
2.7/0.6 |
2.5/0.7 |
2.3/0.6 |
2.3/0.6 |
|
Bandwidth (MHz/km) |
N/A |
200/600 |
500/500 |
1500/500 |
3500/500 |
|
850nm laser bandwidth(MHz/km) |
N/A |
N/A |
N/A |
2000 |
4700 |
|
Numerical aperture |
0.13±0.01 |
0.275±0.015 |
0.200±0.015 |
0.200±0.015 |
0.200±0.015 |
