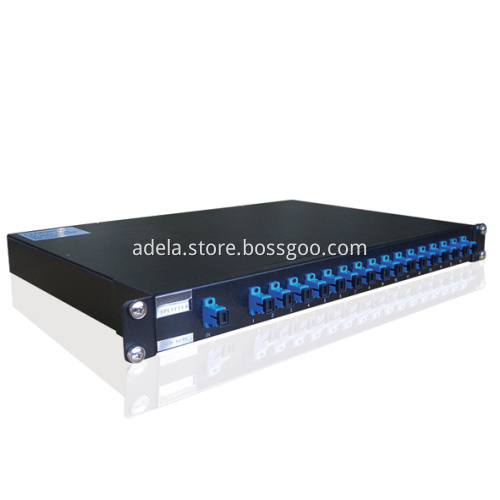

1:32 PLC splitter 1U rackmount type
Your message must be between 20 to 2000 characters
Contact Now
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40℃ to 85℃
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS
Specifications
Table 1 – 1×N PLC Splitter
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB)(P/S Grade) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40~85 |
|||||
|
Storage Temperature (℃) |
-40~85 |
|||||
|
Device Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×12×4 |
|
Module Dimension (mm) (L×W×H) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
120×80×18 |
140×115×18 |
|
Mini-Module Dimension (mm) (L×W×H) |
50×7×4 |
50×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
N/A |
Table 2 – 2×N PLC Splitter
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Operating Wavelength (nm) |
1260~1650 |
|||||
|
Fiber Type |
G657A or customer specified |
|||||
|
Insertion Loss (dB) |
4.0 |
7.6 |
11.0 |
14.4 |
17.5 |
21.0 |
|
Loss Uniformity (dB) |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
|
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40~85 |
|||||
|
Storage Temperature (℃) |
-40~85 |
|||||
|
Device Dimension (mm) (L×W×H) |
40×4×4 |
50×4×4 |
50×4×4 |
50×7×4 |
60×7×4 |
60×12×4 |
|
Module Dimension (mm) (L×W×H) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
|
Mini-Module Dimension (mm) (L×W×H) |
60×7×4 |
60×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
N/A |
Notes:
1. Specified without connectors.
2. Add an additional 0.15dB loss per connector.
