Basic Info

Product Description

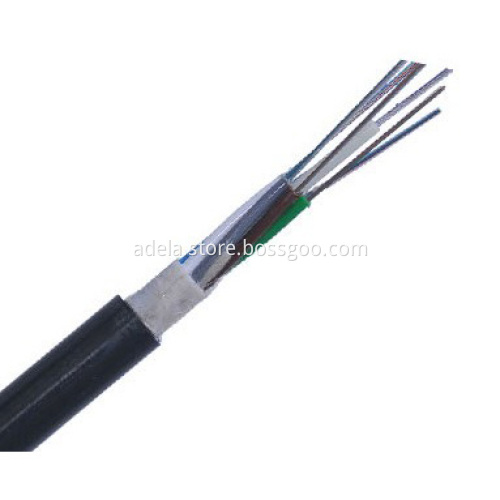

The multi loose tube outdoor fiber optic cable is dielectric design , up to 288 fibers per cable . It has excellent performance with good tensile and crush ,used for outdoor duct .

Characteristics:

1. Non-metal strength member.
2. Filler protect loose tube fiber.
3. Non-metal strength has an excellent anti-electromagnet ability

Application:
1. Adapted to Outdoor distribution.
2. Access network and local network in high electromagnetic interfering places.

3. Adapted to trunk power transmission system.

Technical Parameters:

Fiber Count	Out sheath Diameter	Weight	Minimum allowable (N)		minimum allowable Crush Load (N/100mm)		Ben Minimum ding Radius (MM)		Storage temperature
Fiber Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
2-60	9.8	65.00	1500	600	1000	300	20D	10D	-40+60
72	10.5	85.00	1500	600	1000	300	20D	10D	-40+60
96	14.5	145.0	1500	600	1000	300	20D	10D	-40+60
144	18.3	185.0	1500	600	1000	300	20D	10D	-40+60

Optical Characteristics:

Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A.B.C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1.A2 .B3)		B4: Main technical data for positive dispersion shifted single-mode fiber
