ODC FTTA CPRI cable assembly
Your message must be between 20 to 2000 characters

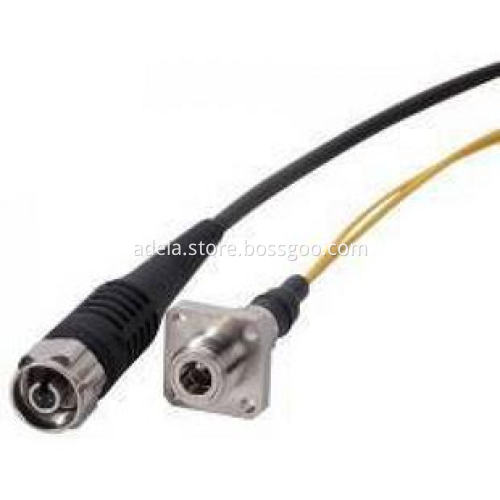

Contact NowODC Commonly used on Samsung, Ericsson and Alcatel-Lucent RRHs. This weatherproof connector attaches to socket on panel of RRH or extension jumper.
Feature:
1.2 fibers, singlemode or multimode
2.Compact design with 2 x 1.25 mm ferrules
3.Built-in socket with square or hexagonal flange
5.Screwed locking mechanism
7.Waterproof, dust proof and corrosion resistant
8.Waterproof protection caps
10.RoHs compliant
11.Full compatibility with previous version
12.Fulfills performance standard IEC 61753-1 Cat. E
Applications
1. Fiber Optical link IBM ESCON networks
2. Peripheral control units
3. Storage devices and Processors
4. Workstations and From Molex
Specifications
|
Parameter |
Specifications |
||
|
Insertion Loss |
Single mode |
Type≤0.2dB |
97%≤0.45dB |
|
Multimode |
Type≤0.2dB |
97%≤0.50dB |
|
|
Return Loss |
Single mode |
≥50dB |
/ |
|
Technology |
Full ceramic ferrule & sleeve |
||
|
Housing material |
Nickel-plated brass |
||
|
mechanical performance |
ODC plug |
≤800N tensile load |
|
|
ODC socket |
≤30N static side load |
||
|
installation torque force |
Min 1 Nm |
Max 2Nm |
|
|
Operating temperature |
IEC 61300-2-22 |
–40°C up to + 85 °C |
|
|
Mating durability |
/ |
500 cycles |
|
|
Ingress protection |
IEC 60529 |
IP68 |
|
|
Salt mist |
IEC 61300-2-26 |
30days passed |
|
|
Vibration |
IEC 61300-2-1 |
passed 10 – 500 Hz / 10g |
|
|
Shock |
IEC 61300-2-9 |
pass |
|
