ODVA FTTA CPRI cable assembly 2 fibers G657A2
Your message must be between 20 to 2000 characters
Contact NowODVA FTTA CPRI cable is IP68 rated ,industrial grade ,used for FTTA CPRI , industrial network .
Description:

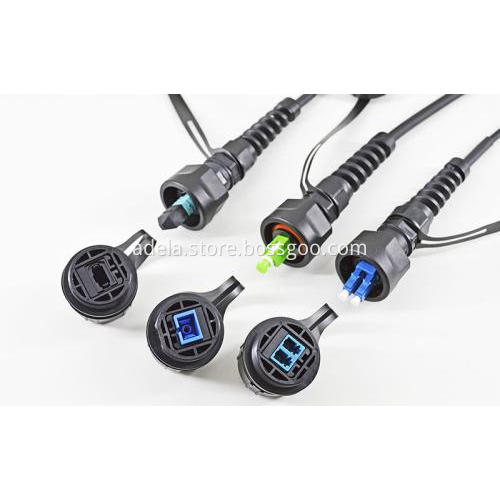

This ODVA outdoor waterproof connector attaches to adapter on panel of RRH. The common SC simplex/LC duplex/MPO connector inside allows easier testing and cleaning. There are two types of connector plugs available: threaded and easy-connect bayonet.
Feature:
Meet standard of Telcordia GR-326-CORE
Good performance of insert-pluck repeat ability and good interchangeability
IP68 rated to ensure protection from dust and water immersion
Flame retardant materials per UL-94-0
Bayonet-style mechanical lock
Temperature range of-40°C-85°C
Applications
1.Harsh environments where chemicals,corrosive gases and liquids are commonplace
2.Telecommunication/CATV Systems
3.FTTX and Special environmental
4.Mobile routers and internet hardware
Specification:
|
Parameters |
Standard Fiber Cable Assemblies |
||
|
Connector |
Side-A |
Compact RRU/BBU Helix cover Connector |
|
|
Side-B |
DLC(duplex LC),SC,ST,FC,MPO/MTP |
||
|
Fiber count |
2core or 4......24 |
||
|
Fiber Type |
SM(G.652D/G.657A) |
MM(OM1/OM2/OM3) |
|
|
Jacket Materials |
LSZH/OFNR/PVC/PE |
||
|
Ferrule Materials |
Ceramic |
||
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
|
Insertion Loss(dB) |
≤ 0.3dB |
≤ 0.3dB |
|
|
Return Loss(dB) |
≥45dB(PC/UPC) |
≥35dB(PC/UPC) |
|
|
Exchange ability |
≤ 0.2dB |
||
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
||
|
Operating Temperature (°C) |
-14~ + 85 |
||
|
Storage Temperature (°C) |
-40 ~ +85 |
||
