SC plug type attenuator Single mode 1-20dB
Your message must be between 20 to 2000 characters

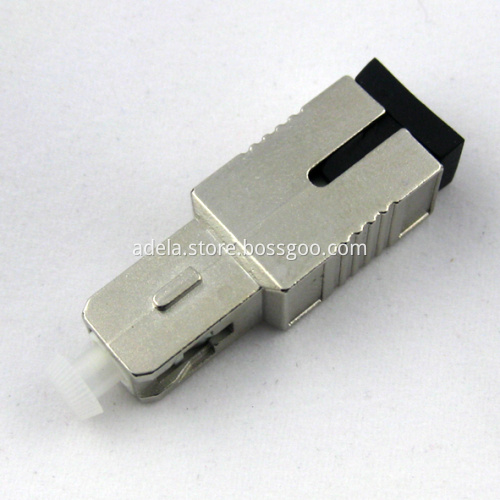

Contact NowSC fiber optic attenuators are female to male type with metal body and high precision ceramic ferrule and sleeves ; they are high power light source durability and wavelength independent . We have SC UPC fiber optic attenuators and SC APC fiber optic attenuators . They are used in Erbium Doped Fiber Amplifiers and Dense Wave Division Multiplexers to weaken the overpowered optical singal at a certain fixed value level , 1dB to 25dB available .
Product Specifications
|
Fiber Connector |
SC/UPC or SC/APC |
Connector Gender |
Fixed Male to Female |
|
Transfer Mode |
Singlemode |
Attenuation |
1-20dB |
|
Operating Wavelength(nm) |
1260~1620(SM) |
Attenuation Accuracy |
±0.5dB |
|
Return Loss |
≥55dB for UPC , 65dB for APC |
Polarization Dependent Loss |
≤0.2dB |
|
Max Optical Input Power |
200mW |
Humidity |
95%RH |
|
Operating Temp Range |
-40~80°C |
Storage Temp Range |
-40~85°C |
