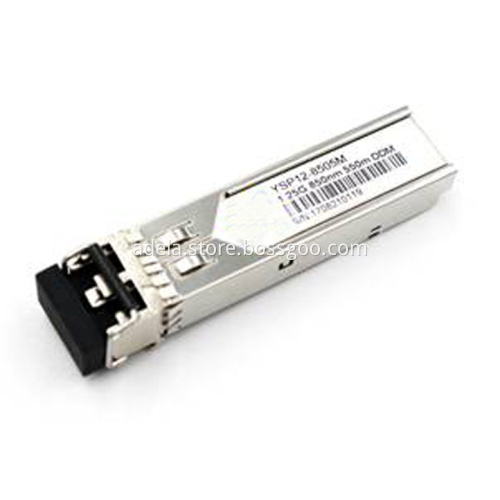

1.25 Gbps SFP MM Transceiver

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA and SFF-8472.

Features

 Up to 1.25Gbps data links

 850nm VCSEL Laser and PIN photo-detector

 Up to 550m on 50/125µm MMF

 Duplex LC receptacle optical interface compliant

  Hot pluggable

 All-metal housing for superior EMI performance

RoHS6 compliant (lead free)

 Operating case temperature:

Commercial: -5°C to +70°C

Extended: -20°C to +80°C

Industrial: -40°C to +85°C

Applications

 Gigabit Ethernet

 Fiber Channel

  Switch to Switch interface

 Switched backplane applications

 Router/Server interface
