75W Class II DALI Dimmable Led Driver

The LCP 75W is DALI Dimmable Led Driver, designed for European market where has higher safety requirement, suitable for Class II application, Programmable LED driver that operates from 90~305Vac input with excellent power factor. Created for high bay, tunnel and roadway lights, Class II Dim-to-off Power Supply provides a Dim-to-off mode with low standby power. The high efficiency of this Outdoor DALI Led Driver and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Features:

1. Input voltage range: 90~305Vac, Class II design;
2. Constant power design, outputs programmable;
3. DALI control, can be dim-to-off;
4. 12V/0.2A auxiliary power supply is optional;
5. Output is isolated with dimming signal;
6. Stand-by power is less than 0.5W;
7. Multiple protection: SCP / OVP/OTP;
8. Surge protection: line-line 5KV;
9. Ambient temperature: -40℃~+60℃;
10. Degrees of protection: IP67;

11. 5 year warranty;

Application:

Suitable for LED industrial lighting, architecture lighting, flood lighting, and roadway lighting, etc.

Technical parameters:

Specification

Output Voltage VS Current Curve

Intelligent Control

Dimming Interface

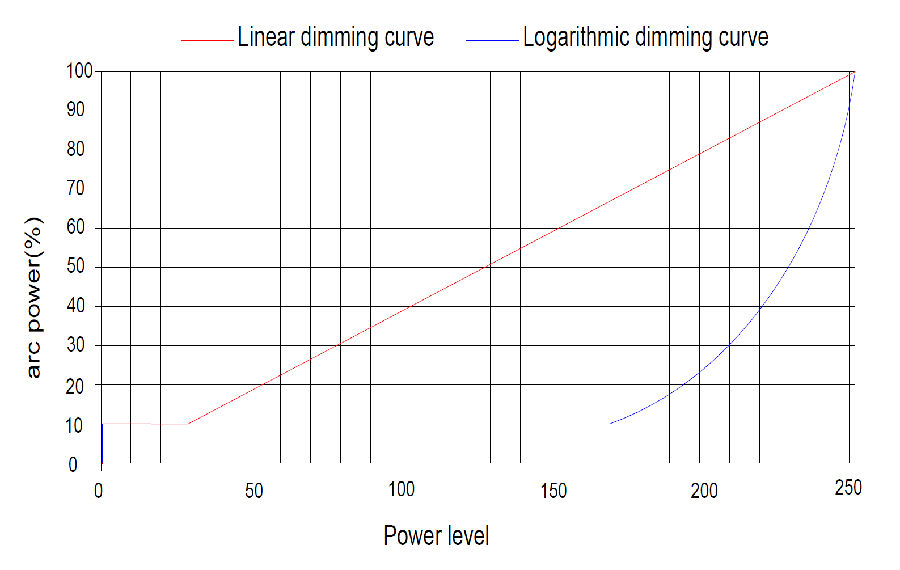

DALI control (for D models)
