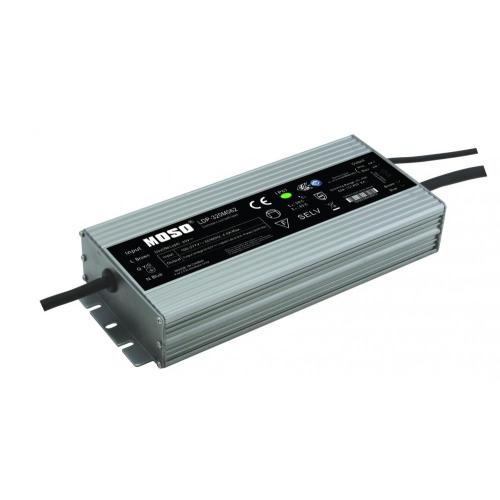

320W Constant Current Street Light LED power supply

320W Constant Current Street Light LED power supply

The universal programmable constant current led driver offer all dimming options and a wide range of output current, which deliver maximum flexibility with customized operating settings and intelligent control options for OEMs, as one outdoor led driver can be programmed for many different luminaire designs. LDP-320R054 model street light led driver provides built-in timer dimming with five phase.

Product features:

Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Built-in 3-in-1 dimming and auto-react:0-10Vdc, PWM signal, timer control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;

Soft-switching patented technology, high efficiency up to 93%;

Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.

Technical Parameters:

Specification:

Output voltage vs current curve:

LDP-320M041    LDP-320R041

LDP-320M062    LDP-320R062

LDP-320M230    LDP-320R230

LDP-320M457    LDP-320R457

Application:

LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.

About MOSO:

MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
