Volatile Organic Compounds Catalyst for Voc System

VOC(Volatile Organic Compounds)Catalyst is formed by the first carrier cordierite honeycomb ceramic, second carrier Y-Al2O3 and the active components noble matel Pd and PT. It is the new high efficient catalyst for VOC waste gas.

Product Features
Widely application- It can be applied to the industrial waste gas purification which mainly contains monoxide, hydrocarbon and related oxide ramification.

Low gas-flowing resistance, lower initiative temperature for reaction, high active function, wide range for air speed. When the hydrocarbon concentration is within 500-900 mg/m3, the speed range is within 15000-30000 h-1, the initiative temperature for the reaction is within 180-300 centigrade, it can achieved more than 98% purification.

Application Area
It can be used for noxious waste gas containing hydrocarbon and monoxide chemicals. Such gas is from many industries such as chemical, food, mechanical, instrument and meters, household applications, painting, insulating material and colorful steel.

Major Specification and Parameters

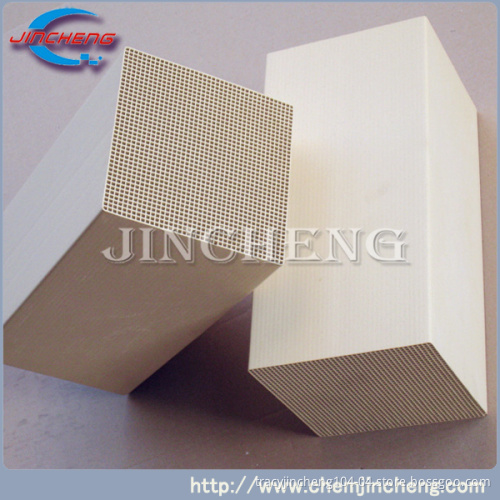

Product shape: Square honeycomb ceramic
Cell shape: Round and square
Specific Surface Area for the carrier: 20m2/g (min. )
Size: 150x150x50, 100x100x50, 50x50x50, 49x49x49 (mm*mm*mm)
Cell Density: 30/in2(square), 8/cm2(round)
Crushing Strength: A more than 12MPa, B more than 4.5MPa
