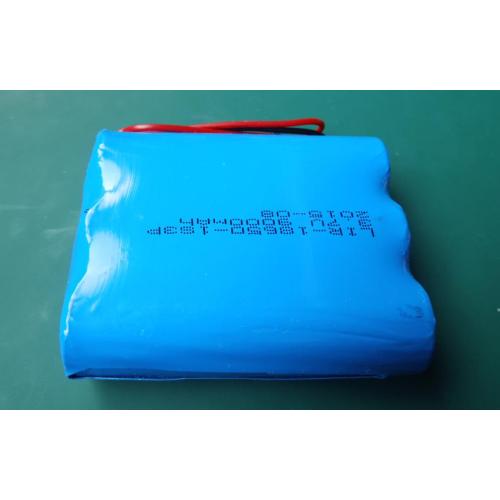

3.7 volt rechargeable lithium battery pack
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 15-25 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Lithium ion battery has been developed as a major power battery due to its ability to charge repeatedly. However, due to its combination with different elements, the properties of the anode materials are very different in various aspects, which leads to more disputes in the industry over the course of cathode materials,cheap lithium batteries
Main features:
1. The battery pack is safe and high temperature resistant. The cycle life is long.3.7 volt rechargeable lithium battery pack
2. The battery pack has a high cycle life, which conforms to the values of low carbon, energy saving and environmental protection.
3. The battery has a built-in BMS system with multiple protection functions. The protection system (PCM/BMS) is all equipped with the most advanced chips in Japan and the United States.
3.7V 9Ah battery lithium ion
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
4.35V |
||
|
2 |
Nominal voltage |
3.7V (1S4P) |
||
|
3 |
Initial impedance |
90mΩ |
||
|
4 |
Nominal capacity |
9Ah |
||
|
5 |
Minimum capacity |
8.8Ah |
||
|
6 |
Charge current |
Standard Charging::0.2C5A (1.8A) Rapid charge:0.5C5A C(4.5A) Max |
||
|
7 |
Standard Charging method |
1.8A(0.2C5A) CC(constant current)charge to 4.35V,then CV(constant voltage 4.35V)charge till charge current decline to ≤90mA(≈0.01C5A) |
||
|
8 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 3.5hours(Ref.) |
||
|
9 |
Max.discharge current |
4.5A(0.5C5A) |
||
|
10 |
Discharge cut-off voltage |
2.75V |
||
|
11 |
Shelf life |
2 years |
||
|
12 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
||
|
13 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
14 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
|
|
Less than 6 month |
-20℃~+35℃ |
|
|
15 |
Pack Weight |
Approx:158g |
||
|
16 |
Pack Dimension |
Length: Max68.00 mm Width: Max 57.00 mm Thickness1:Max 20.00 mm |
||
