1.25mm pitch 180°Dual Row Wafer-SMT AW1256VD-S-F-xP

1.product introduction

low crosstalk, high anti-interference ability and other characteristics to ensure accurate data transmission.At the same time, the Wire To Board Connectors also provides convenience for the maintenance and upgrade of the equipment, making the equipment more flexible and reliable.With the advancement of science and technology, Wire To Board Connectors are also constantly innovating and developing.For example, the emergence of high-density connectors makes it possible to achieve more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the improvement of waterproof, seismic, corrosion resistance and other properties also makes the Wire To Board Connectors can be applied in special environments.

2.product parameter

SPECIFICATIONS
·Voltage rating：150V AC.DC
·Current rating：1A AC,DC
·Withstanding Voltage：500V AC/minute
·Insulation resistance:500MΩ min
·Temperature range：-40℃-+105℃
WAFER
·Part NO：AW1256VD-S-F-xP
·Material：Pin：Brass/Gold over Nickel
           Shell: Brass/Tin over Nickel
           Insulator：Nylon 6T，UL94V-0
           Cap：Nylon 6T，UL94V-0
·Mates with：AH1256 series Dual Row Housing
·Color: White

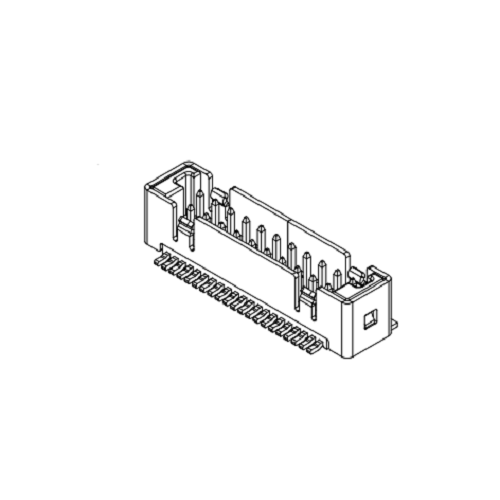

3.product picture
