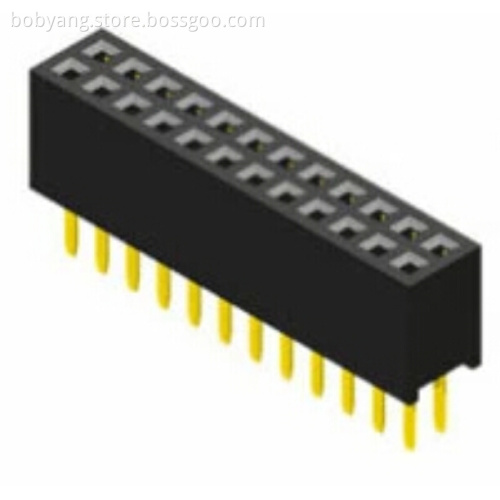

2.54mm Female Socket Dual Row (W=5.0 H=8.5)

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm Female Header Dual Row Straight Type(W=5.0 H=8.5)  electronic Socket cennector

2.54mm pitch spacing pin headers and sockets are are available in through hole or surface mount in single, double and triple row. Straight, right angle and U shaped configurations allow a wide variety of design options.The 2.54mm can accommodate a maximum current of 3A, with a 30 to 22 AWG wire size, and up to 40-positions. Antenk offers these female headers in high quality and affordable China-quoted price that snuggly fits with the pins of a male header and acts as a receptacle.

  SPECIFICATION
Current Rating:                       3.0 Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass
Insulator Material:                   PA9T,UL 94V-0 Black
