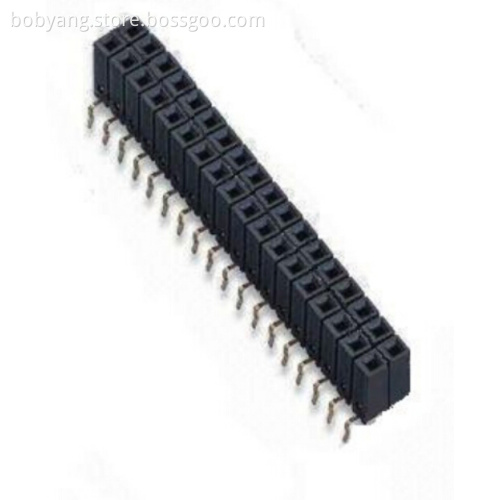

2.54mm Female Header Dual Row BottomEntry Type

Manufacturer :ANTENK ELECTRONICS.,CO LTD.

High quality, competitive price, fast delivery, quick reply. CE, Rohs, Reach passed.

These 0.1″ (2.54 mm) female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches 0.1″ male header strips. Our straight female headers are available in a variety of commonly used pin counts

 SPECIFICATION
Current Rating:                       3.0 Amp
Insulation Resistance:            1000M ohms min
Contact Resistance:               20M ohms max
Dielectric Withstanding:          AC500V
Operating Temperature:          -65°C  to  +125°C
Contact Material:                    Brass

Insulator Material:                   PBT,UL 94V-0 Black
