2.54mm pitch 180°Wafer-SMT AW2543VB-S-xP

1.product introduction

A Wire To Board Connectors is an electrical connector that consists of two parts, a plug and a socket.The plug usually has a metal pin or contact point, and the socket has a corresponding jack or contact point, and the circuit is connected and disconnected by inserting and pulling.This Wire To Board Connectors provides reliable electrical contact with high bandwidth and signal transmission rates.Wire To Board Connectors are widely used in various electronic equipment and communication systems, such as computers, mobile devices, network equipment, industrial control systems, etc.They are responsible for the transmission of high-speed data, audio and video signals, power supply and other functions, providing a reliable physical connection between devices.

2.product parameter

SPECIFICATIONS
·Voltage rating：250V AC.DC
·Current rating：4A AC,DC
·Withstanding Voltage：1000V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-40℃-+105℃

WAFER
·Part NO：AW2543VB-S-xP
·Material：Pin：Brass/Tin over Nickel
           Insulator：LCP，UL94V-0
·Mates with：AH2543 series Housing
·Color: Ivory

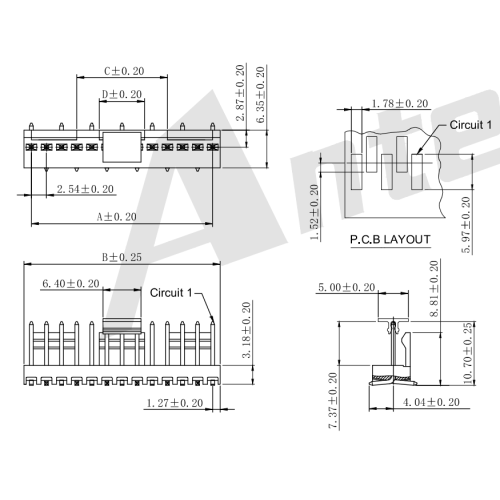

3.product picture
