2.54mm pitch Dual Row 90°Wafer AW2549RI-2xNP

1.product introduction

A Wire To Board Connectors is a device that connects a circuit board to a wire.It usually consists of two parts: one is a metal pin inserted into the hole of the board, and the other is a connector holding the wire.The Wire To Board Connectors has a color recognition function, so that the connector of different colors can only be inserted into a specific hole, thus avoiding the problem of inserting wrong.The Wire To Board Connectors uses spring mechanics to clamp the wire and connect it to the metal pins on the PCB (printed circuit board).These Wire To Board Connectors typically contain one or more conductors at the same time and have many independent pressure contacts, thus providing sealed protection against oxidation of copper posts and pins on the board and guaranteeing a stable connection.Wire To Board Connectors also have good mechanical strength and vibration properties, so they can be used in a variety of harsh conditions.

2.product parameter

SPECIFICATIONS
·Voltage rating：250V AC.DC
·Current rating：3A AC,DC
·Withstanding Voltage：1000V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-40℃-+105℃

WAFER
·Part NO：AW2549RI-2xNP
·Material：Pin：Brass/Tin over Nickel
           Insulator：LCP，UL94V-0
·Mates with：AH2549I-2xNP series Housing
·Color: Ivory

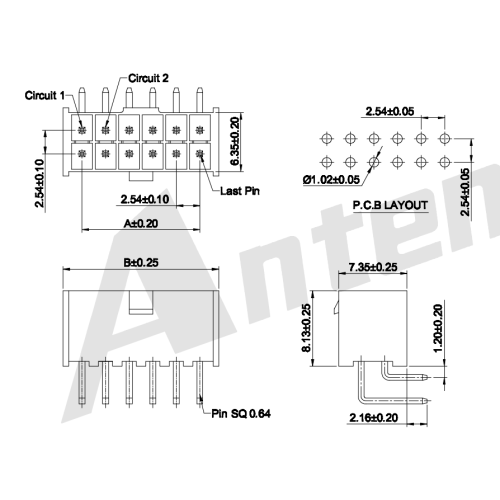

3.product picture
