3.5mm Pin Header Dual Row Straight Type

1.product introduction

This connector is widely used in electronics, electrical appliances, instruments in the PCB circuit board, its role is to be blocked in the circuit or isolated between the circuit, play a bridge function, to undertake the task of current or signal transmission.It has a reputation for universal connectors.Generally, it is paired with a bar, wire connector and so on.It is usually used with the bar bus to form a board-to-board connection;Or used with electronic wire harness terminals to form a board-to-wire connection;Can also be used independently for board to board connection.Because the specifications required by different products are not the same, there are also a variety of model specifications, ro

w number: single row, double row, three row, four row, up to four rows.It has the following functions and uses:Connect the communication between the circuit boards to reduce space occupation in electronic products, improve wiring efficiency, and facilitate maintenance.Reliable electrical connections simplify installation and maintenance, and flexible design options reduce costs.

In sewing, it is used to fix fabric, mark the position, trim thread, remove thread, change the size of clothes, make auxiliary tools and other purposes.

2.product parameter

Current Rating: 14Amp max

Insulation Resistance: 100MΩ min.at DC 500V

Contact Resistance: 20mΩ max

Withstand Voltage: AC 500V For 1 Minute

Operating Temperature: -40°C to +125°C

Contact Material: Copper alloy

Contact Plating: Au or Sn Over Ni

Insulator Material: LCP+30%GF,UL 94V-0

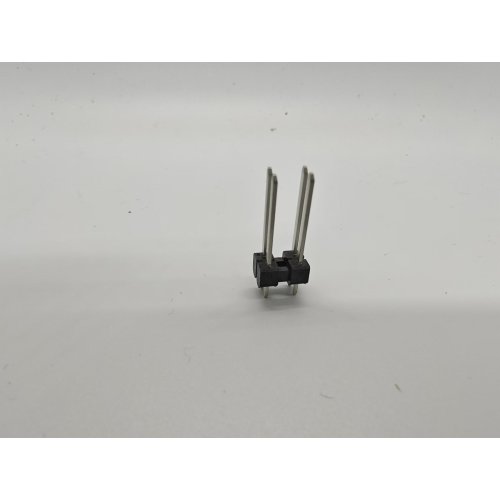

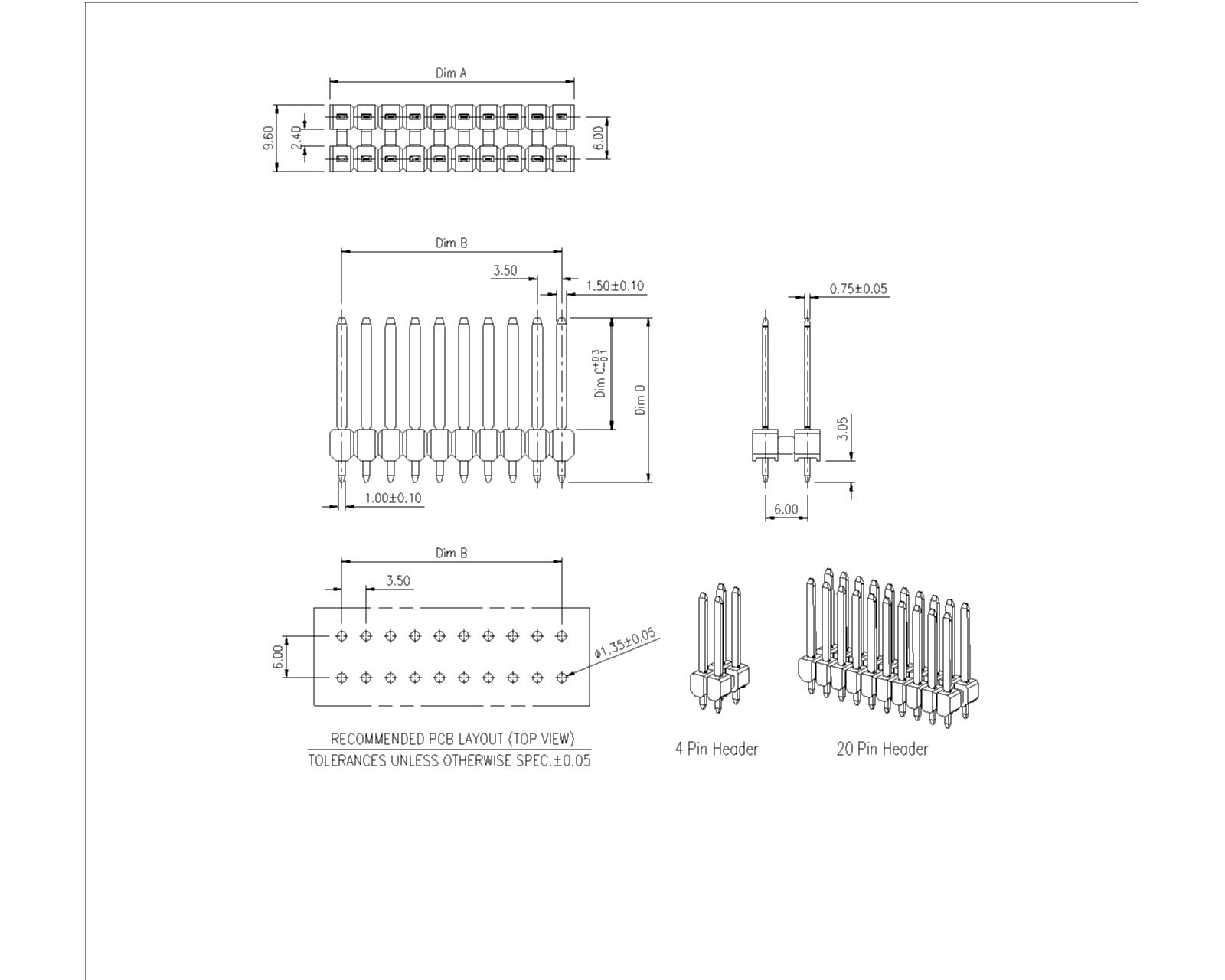

3.product picture
