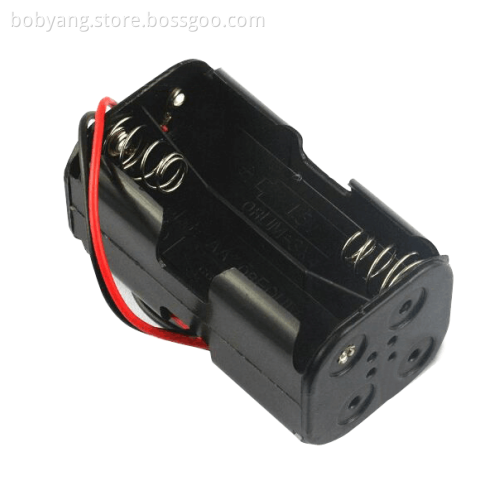

4 AA Battery Holder Double with Wire leads

4 AA Battery Holder Double with Wire leads :

Specifications

Part Number	BBA-5-4-150-2-A
Type	Battery Holder
No. of Cells	4
Cell Size	AA
Battery Reference	ALL MANUFACTURERS, ANSI 15A,IEC LR6, NEDA 15,15C, 15D, 15F, 15M, 15NC, 221, 1101M, 1113M, 1306AP, 1306M, 1314M, 1606M
Plastic
Material	Polypropylene
Color	Black
Flammability	UL 94-HB
Metal
Material	Nickel-plated spring steel
Spring	MUSIC WIRE,0.7DIA,NICKEL PLATE
Wire	26 AWG 1007 UL/CSA APPROVED
Termination	Wire leads
RoHS	Compliant

Dimension of 4 AA Cell Holder Case Box Double with wires

Options of Antenk AA Plastic Battery Holders
Holders with PC Pins for direct board mounting, simplifing product design
Holders with wire leads for off board battery holder mounting

Antenk's AAAA, AAA, and AA Battery Holders
Antenk offers a large selection of AAAA, AAA, and AA battery holders with springs or pressure contacts
Antenk`s battery holders hold from one to eight batteries and are available with printed circuit pins, wire leads, 9 V type snap fasteners, or solder lugs. Standard connectors can be terminated on the wire leads as an option and are great time savers. Antenk`s holders feature series connection, but can be ordered as parallel connections. A few standard products are both series or parallel by design. The bodies are made with either a polypropylene plastic with a UL94-HB flammability rating or a nylon plastic with a UL94-V-0 flammability rating.
