Signal D-SUB Coaxial Contact Vertical Female
  • Signal D-SUB Coaxial Contact Vertical Female
Signal D-SUB Coaxial Contact Vertical Female

Signal D-SUB Coaxial Contact Vertical Female

  • $500.00
    ≥1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Min. Order:
1000 Piece/Pieces
Transportation:
Ocean, Air, Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 2000K/month
Supply Ability: 2000K/month
Payment Type: T/T,Paypal,L/C
Incoterm: FOB,CIF,EXW
Certificate: ISO9001
HS Code: 8536909000
Transportation: Ocean,Air,Express
Port: Shenzhen
Product Description
Product Description

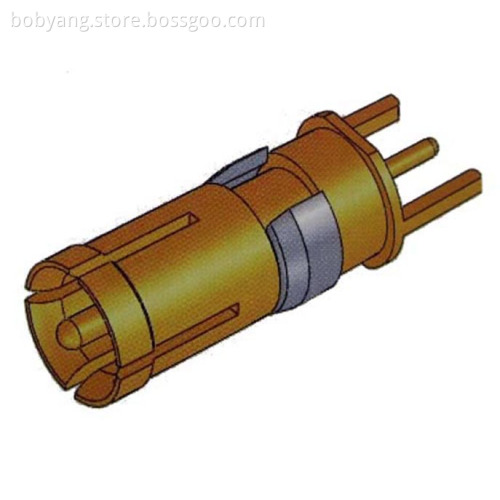

Signal D-SUB Coaxial Contact Vertical Female


Specification:

 P/N
CP11F-12X
Gender Female
Contact Type Coaxial
Material Contacts material Brass
Contact Plating Gold Plated, 1U"-30U"
Contact insulator material Teflon
Electrical Working Voltage 250V AC
Contact Current Rating 5amp Max
Coaxial contact impedance 75Ω
The radio frequency range 0~4ghz.
Voltage standing wave ratio 1.3max
Insulation resistance 5000MΩ Min at DC500V
Mechanical Dielectric Withstanding Voltage 1000V AC rms  at 1 minute
Insertion force 2-7 N /Pin
Extraction force 0.5 N /Pin
Durability 500 cycles
Operating temperature -55°C to +125°C


2D Drawing:

CP11F-12X 19 POWER PIN STRAIGHT FEMALE CONTACT 75Ω(work in coaxial)
