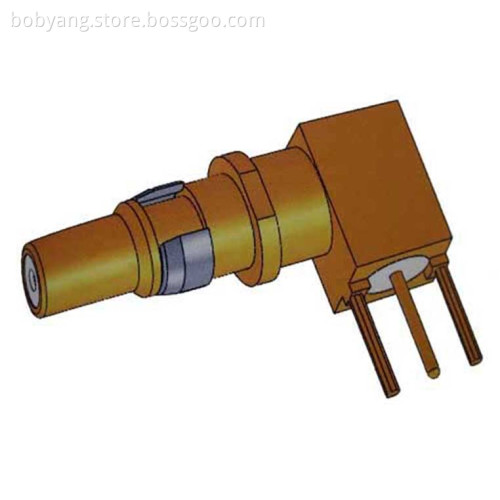

Coaxial D-SUB Signal Contact Male Right Angle

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,L/C
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Signal D-SUB Coaxial Contact/Terminal/Pin Right Angle Plug/Male 75Ω (work in coaxial High Current D-SUB Connector) Specification

P/N	CP11M-11X
Gender	Male
Contact Type	Coaxial
Material	Contacts material	Brass
	Contact Plating	Gold Plated, 1U"-30U"
	Contact insulator material	Teflon
Electrical	Working Voltage	250V AC
	Contact Current Rating	5amp Max
	Coaxial contact impedance	75Ω
	The radio frequency range	0~4ghz.
	Voltage standing wave ratio	1.3max
	Insulation resistance	5000MΩ Min at DC500V
Mechanical	Dielectric Withstanding Voltage	1000V AC rms at 1 minute
	Insertion force	2-7 N /Pin
	Extraction force	0.5 N /Pin
	Durability	500 cycles
	Operating temperature	-55°C to +125°C

Male D-sub Connector Signal Contact, Gold Plated Coaxial Dimension

CP11M-11X 11 POWER PIN RIGHT ANGLE MALE CONTACT 75Ω(work in coaxial)

Antenk Signal/High Current/Coaxial Contacts
A range of Contacts designed for use in mixed layout Connector shells including Signal, Power, Coaxial and High Voltage types.Special high current and coaxial contacts are designed for use mainly in so called mixed connectors, where those contacts can be loaded by „snap in[ means and are used besides an amount of signal contacts depended on the connector style. Mixed connectors are available in DIN, and D-Sub styles.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
