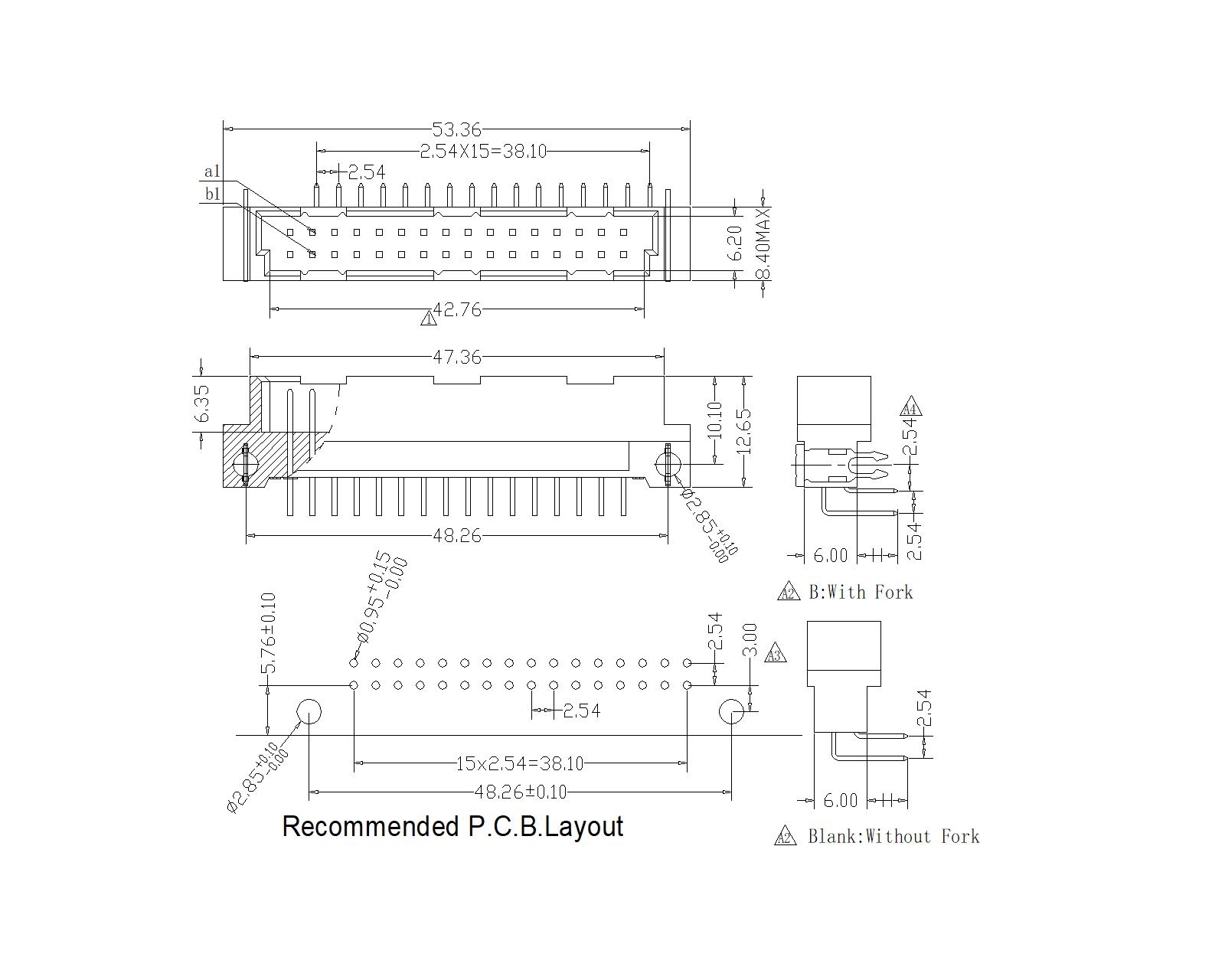

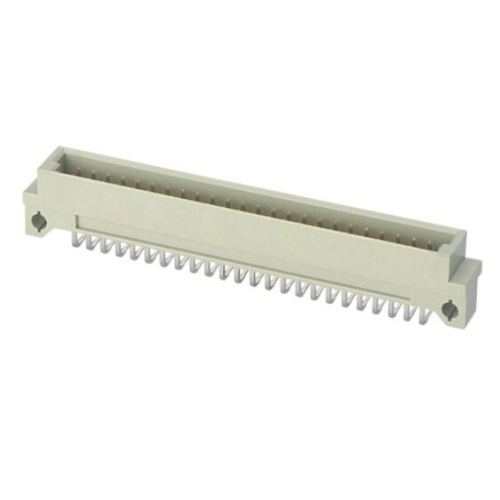

Right Angle Plug Type 32 Positions DIN41612 Connector

The connector is an indispensable component in the electronic device. It bridges the communication between the blocked or isolated circuits in the circuit, so that the current flows and the circuit realizes the predetermined function. The connector pin form and structure are ever-changing. There are various types of connectors depending on the application object, frequency, power, and application environment. Despite the wide variety of connectors, the basic performance can be grouped into three broad categories: mechanical, electrical, and environmental.

Product Information:

1.No.of Contacts:  32P

2.Termination:

 B:Right tail length H=3.0mm
F:Right tail length H=4.4mm
M:Right tail length H=13.0mm

3.Rows Loaded With Contacts

A:Row a+b

C:Row a
C1:Row a+b(2,4,6...)

   SPECIFICATION
Current Rating:                       2.0Amp
Insulation Resistance:            1000MΩ min.at DC 100V
Contact Resistance:                   20mΩ max
Withstand Voltage:                    AC 1000V For 1 Minute
Operating Temperature:               -55°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                      Au or Sn Over Ni
Insulator Material:                   PBT+30%GF UL 94V-0
Insertion Force:                   32 pin max.30N
Withdrawal Force:           0.15N min.per individual contact
