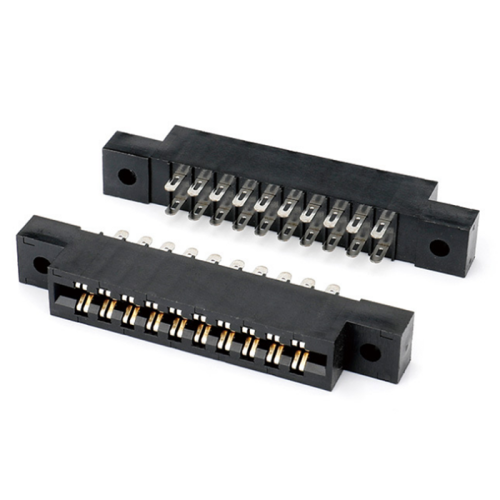

3.96mm Card EDGE Slot Solder Type Connectors

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

Shenzhen Antenk Electronics Co., Ltd. introduced a 3.96mm Card EDGE Slot Solder Type Connectors

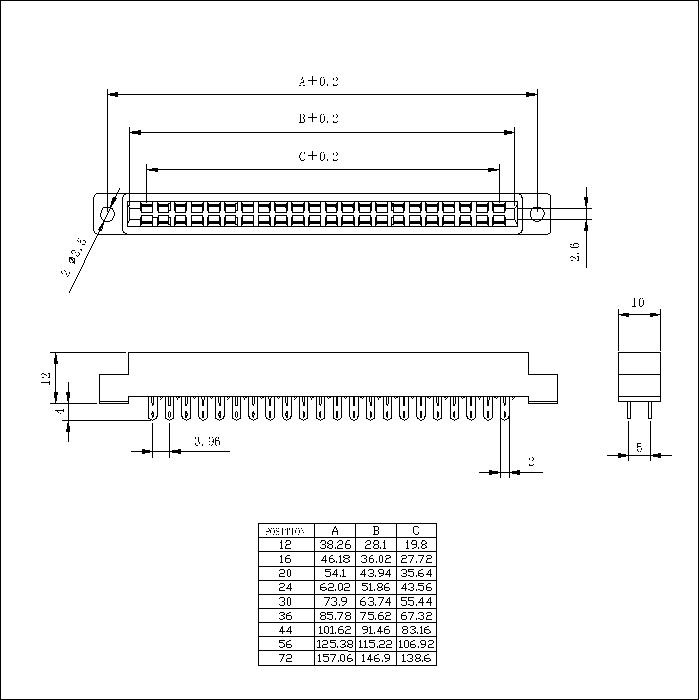

SPECIFICATION
1.CURRENT RATING:5AMP
2.CONTACT RESISTANCE:20 MILLIOHMS MAX AT DC 1OOmA
3.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC
4.OPERATION TEMPERATURE:-55°C TO +105°C

CONTACT:BRASS OF PHOSPHOR BRONZE
HOUSING:30%GLASS FILLED PBT UL94V-0

ECS-XDHS0PB01 3.96mm Card EDGE Slot Solder Type Connectors
