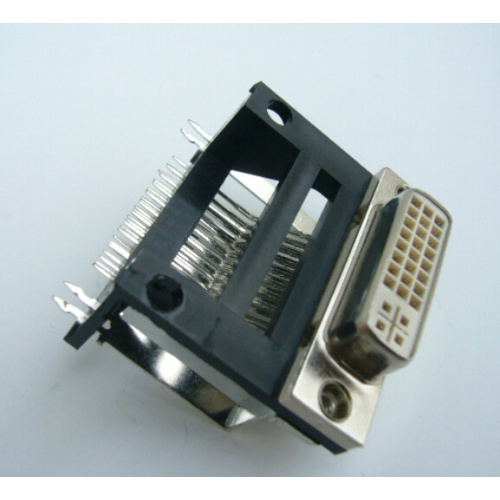

DVI 24+5 Female Angle DIP Type Frame Height

The DVI connector supports T_MDS (Minimum Differential Signal Conversion), which converts video analog signals into digital signals. The connector uses horizontal and vertical cross grounding lugs to provide good grounding and reduce signal crosstalk. It provides a cost-effective interface for analog displays with bandwidths up to 2.5GHz.

Specifications:
Current Rating:               1.5A
Voltage Rating:               40V
Contact Resistance:            30 milliohms MAX
Dielectric Withstanding Voltage:500V AC AT Sea Levol
Insulation Resistance:         1000 Megohms MIN
Operating Temperature:          -20°C  to  +85°C
Contact:                        Brass or Bronze
Housing:                        Temperature Thermoplastics, UL 94V-0
Shell:                          Zinc Alloy/Spcc Nickel Plating All Area
Contact                         Plating: Gold Plating Over Nickel
