Crystal Socket Straight 2-9 P Connector

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

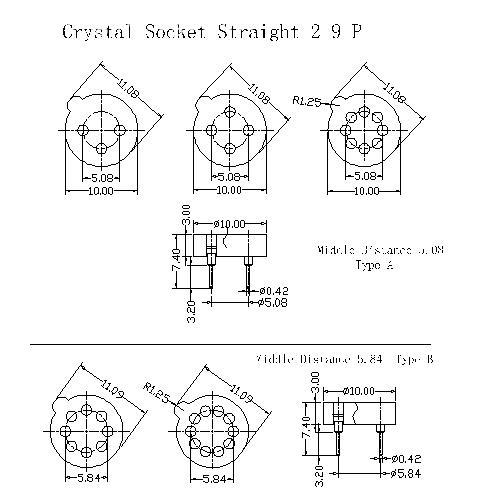

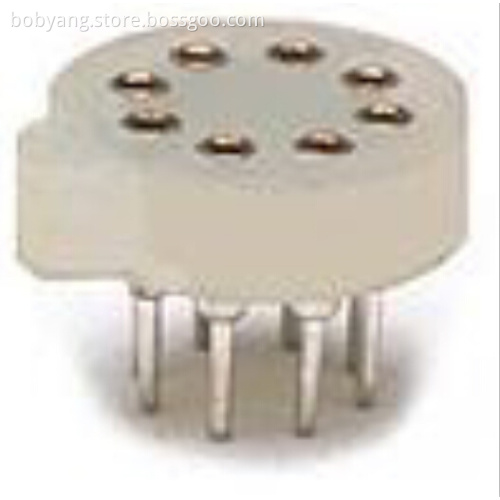

Crystal Socket Straight 2-9 P electronic connector

Specifications:
Current Rating: 1.0Amp
Contact Resistance: 10MΩ max
Dielectric Strength: Min 1000 V RMS
Mechanical Life: Min 100 cycles

Operating Temperature: -40°C to +105°C
Sleeve: Brass CuZn36Pb3(C36000)
Contact Clip(4 finger): BeCu(C17200)
Contact Plating: Au or Sn Over Ni
Insulator Material: PPS+30%GF UL 94V-0

MIFGS01-XXXXX Crystal Socket Straight 2-9p
