Product Description

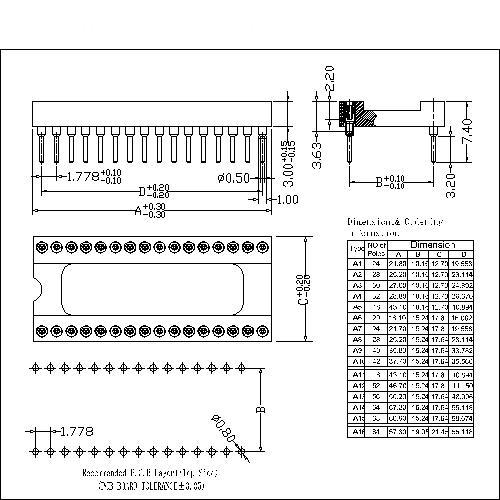

1.78mm Dual-in-line Socket Straight DIP

Specifications:
Current Rating: 1.0Amp
Contact Resistance: 10MΩ max
Dielectric Strength: Min 1000 V RMS
Mechanical Life:Min 100 cycles Operating
Temperature: -40°C to +105°C
Sleeve:Brass CuZn36Pb3(C36000)
Contact Clip(4 finger): BeCu(C17200)
Contact Plating: Au or Sn Over Ni
Insulator Material: PPS+30%GF UL 94V-0

MIFHS01-XXXX 1.778mm Dual-in-line Socket Straight DIP
