6P Receptacle Straight Solder Type Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

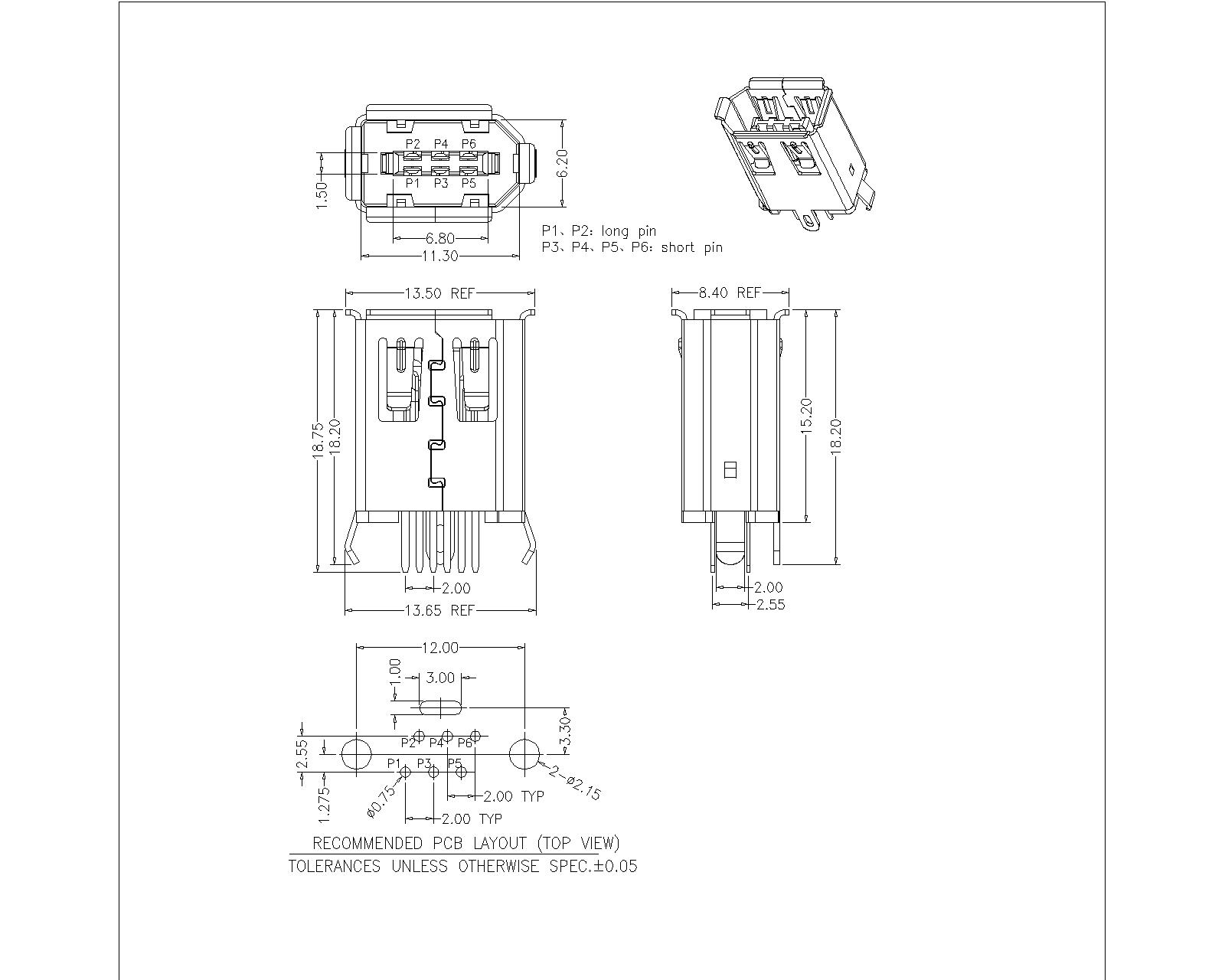

1394 6P Receptacle Straight Solder Type

Specifications:

Current Rating: 1.5A Max
Contact Resistance: 50 milliohms MAX
Dielectric Withstanding Voltage: 500V AC AT Sea Levol
Insulation Resistance: 500 Megohms Min
Operating Temperature: -20°C to +85°C
Housing:
Temperature Thermoplastics, PBT UL 94V-0
Contact:
Copper Alloy T=0.25mm Piated Gold in Mating Area; Tin On Solder Talls
Shell:
Copper Alloy/Steel T=0.40mm Nickel/Plating

IEFS02-B-P-B-X-A 1394 6P Receptacle Straight
