Machined Socket Connectors 2.0 mm MFHDM Series

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

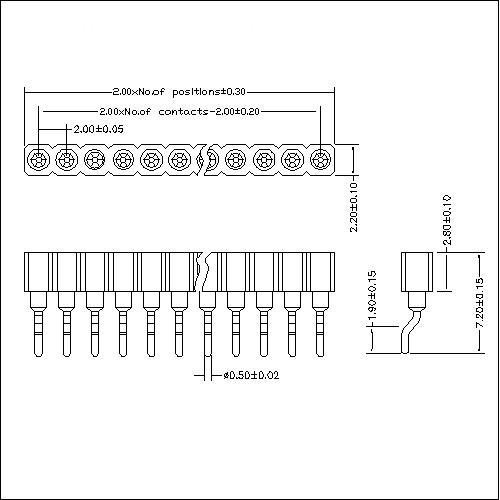

Machined Socket Connectors 2.0 mm MFHDM Series Electronics

Specifications:
Materal:
Pin(outer sleeve)Brass,machined CuZn38Pb2
Plating(outer sleeve)
Tin Plated:2m/80μ"Ni,5μm/200μ"Sn
Gold Pated:2μm/80μ"Ni,0.8μ"gold
Plating(Contact):2μm/80μ"Ni,gold or Tin plated
Insuiator:PPS UL94V-0
Cllp(Contact 6 Flnger):Berylliumcopper,heat teated
Mating pin∅:0.40mm/0.66mm

Electrical:
Current rating:3AmPs/contact max.
Current resistance:Max.10MΩ
Dleiectric strength:Min.1000V

Mechanical:
Average withdrawal force with steel Pin of∅0.432:<90g
Average withdrawal force with steel Pin of∅0.432:>25g
Mechanical Ligecycle:min 200
Operating TemPerature:-40°C to+105°
Soldering TemPerature:+255°C

MFHDM-XXXX01 Machined Socket connectors 2.0 mm MFHDM series
