Machined Socket connectors 2.54 mm MFHES

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN

Product Description

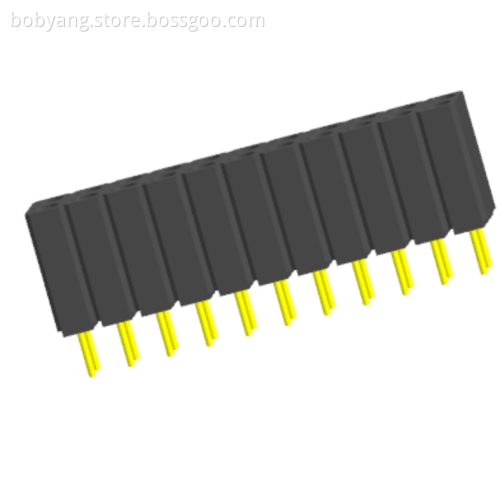

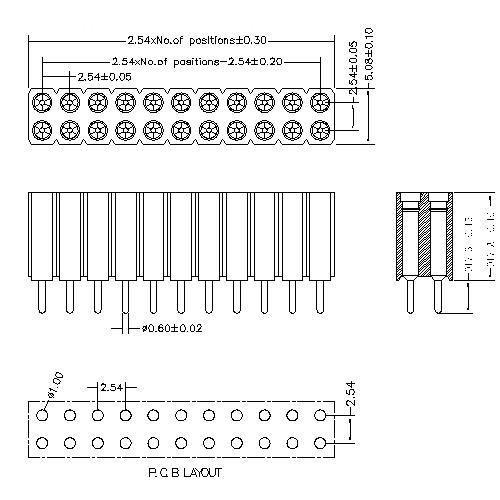

Machined Socket connectors 2.54 mm MFHES series

Specifications:
Pin(outer sleeve):Brass,machined CuZn38Pb2
Plating(outer sleeve):
Tin Plated:2um/80u"Ni,5um/200u"Sn
Gold Plated:2um/80u"Ni,0.80u"gold
Plating(Contact):2um/80u"Ni,Gold or Tin Plated
Insuiator:PPS UL94V-0
C1ip(contact 6 Flnger):Bery11ium copper,heat teated
Electrical:
Current rating:3Amps/contact max
Contact resistance:≤4mΩ/contact
Insuiation resistance:≥1000MΩ at V=100V
Operaing voitage:60V AC/DC
Mechanical:
Average Insertion force with steel pin of ∅0.432:＜250g
Average withdrawal force with steel pin of ∅0.432＞70g
Mechanical lige cycle:min200
Operaling temperature:-40°C to +105°C
Soldering temperature:+255°C
