Machined Socket connectors 2.54 mm MFHES series

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN

Product Description

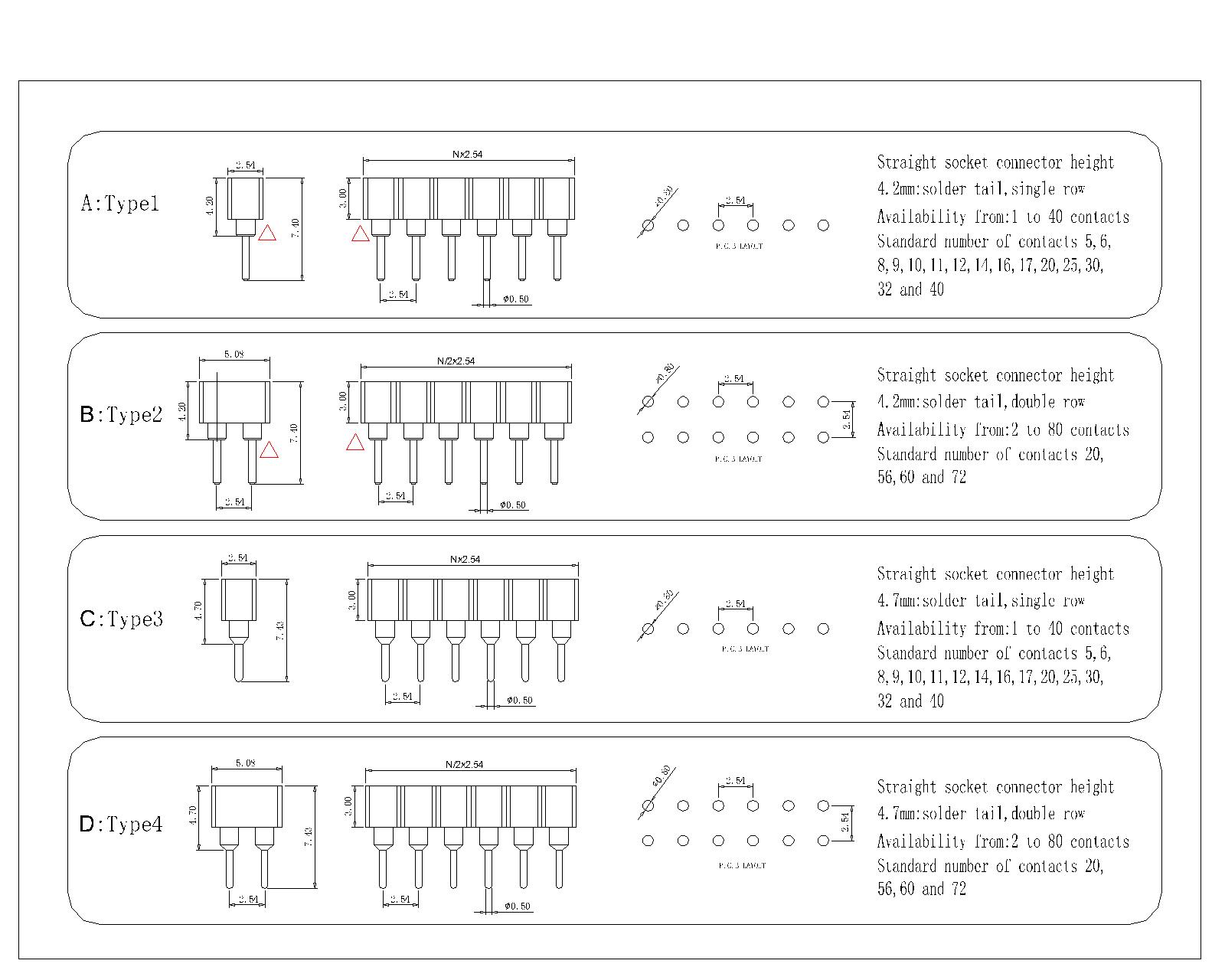

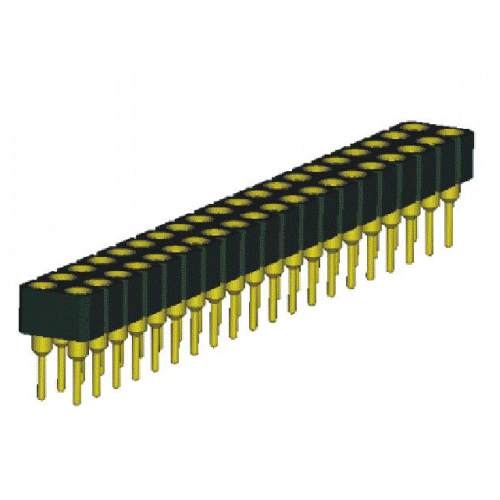

Machined Socket connectors 2.54 mm MFHES series

SPECIFICATIONS:
Insulator: PPS
Fiammability: UL 94V-0
Sleeve: Brass
Contact Clip(4 finger): Beryllium Copper
Mating Pin ∅: 0.40 to 0.56 mm
Forces: (Polished Steel Gauge ∅0.43mm)
-Insertion : 3 N Typ.
-Withdrawal: 1.5 N Typ.
Mechanical Life: Min 500 Cycles
Current Rating:3A
Contact Resistance: Max 10 mΩ
Dielectric Strength: Min 1000V RMS
