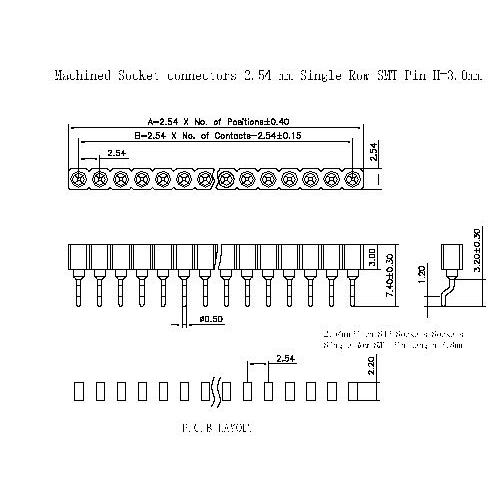

Machined Socket connectors 2.54 mm Single Row

Circular hole pin header can be used as heat conduction materials to connect electronic components with radiators or other heat dissipation devices to speed up the conduction and dissipation of heat.In addition, the Circular hole pin header row needle can also be used for the protection of electronic equipment, such as fixed or inserted in the external housing of electronic equipment, to protect and stabilize the equipment.To sum up, the Circular hole pin header stitch is a common connection device, which is widely used in electronic devices and electronic components.It has a variety of uses, including the connection, plugging, positioning, fixing, combination, expansion, heat dissipation and protection of electronic devices

In sewing, it is used to fix fabric, mark the position, trim thread, remove thread, change the size of clothes, make auxiliary tools and other purposes.

2.product parameter

Insulator:                    PPS

Fiammability:              UL 94V-0

Sleeve:                       Brass

Contact clip(4 finger):  Beryllium copper

Mating pin ∅:          0.40 to 0.56 mm

Forces:    (polished steel gauge ∅0.43mm)

-Insertion                    3 N typ.

-Withdrawal                1.5 N typ.

Mechanical life:           min 500 cycles

Rated cument:            3A

Contact resistance:      max 10 mΩ

Dielectric strength:       min 1000V RMS

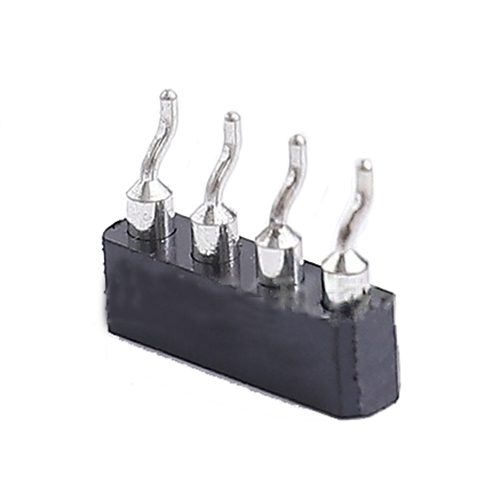

3.product picture
