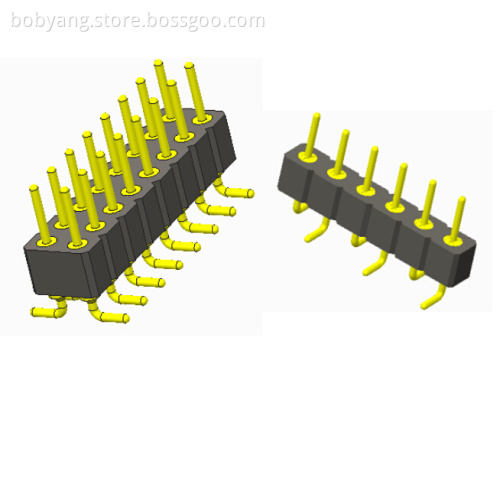

Machined Pin Header Connectors 2.54 mm

Machined Pin header connectors 2.54 mm: MPHEM series electronics

Pin header connector widely used in electronics, electrical appliances, PCB applications, serving as circuit blocker or to isolated circuit.
It can function as a bridge, accomplishing he task of current or signal transmission. Typically used as the mate to female header or with electronic wire terminals. Can be independently used for plate and plate connection.

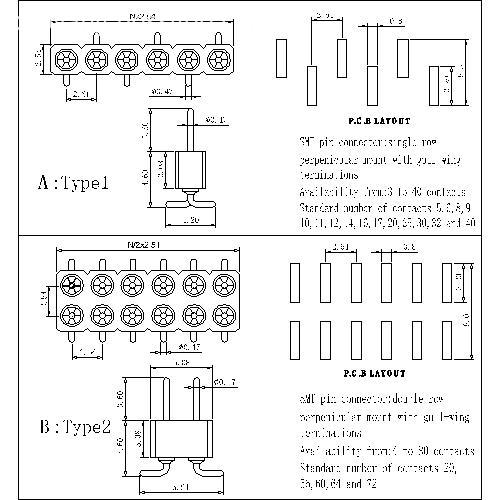

Specifications:
Insulator:                    PPS
Fiammability:              UL 94V-0
Sleeve:                       Brass
Mating pin ∅:              0.41 mm
Mechanical life:           min 500 cycles
Rated cument:            3A
Contact resistance:      max 10 mΩ
Dielectric strength:       min 1000V RMS
