SMT Micro USB without Locating Pegs

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

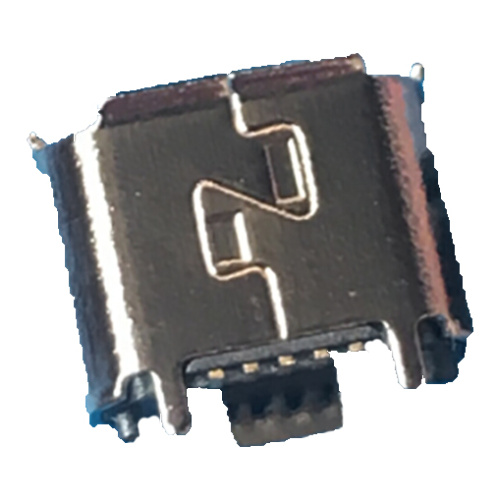

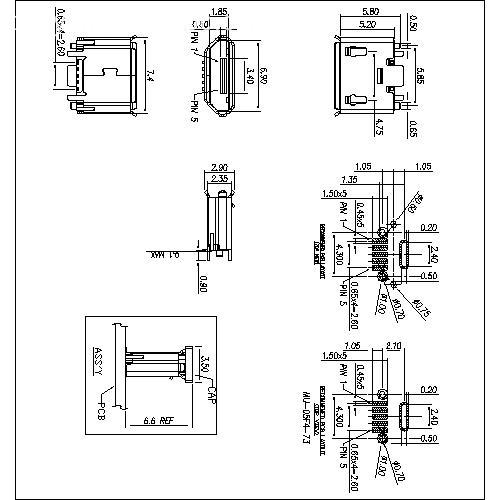

Micro USB 5P Receptacle B Type Vertical SMT With or without Locating Pegs

Specifications:
1.Electronical Characteristics:
1.1 Current Rating:1A
1.2 Dielectric Withstanding Voltage:250V DC
1.3 Contact Resistance:50MΩ Max
1.4 Insulation Resistance:100MΩ Min 250V DC
2.Material And Plating:
2.1 Housing:LCP UL94V-0
2.2 Contact:C2680R-H,50u" Nickel Underplating Over All,1u" Gold Plated On Contact Area
2.3 Shell:SUS,80u" Nickel Plated
3.Mechanical Characteristics:
3.1 PIN Strength Back:0.5kgf Min
3.2 Wetting property:Tempreture235±5°C,Time5±0.5s
3.3 Total Mating Force:3.57kgf Max
3.4 Total Unmating Force:1.00kgf Min
3.5 Durability:5000 Cycles
3.6 Temperature Resistance:250±5°C,Two Miniutes
3.7 Operating Tempreture:-30°C +80°C
