OBD 16P Male Angle Reverse 12V Type 14.6MM

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

OBD 16P Male Angle Reverse 24V Type

Electrical Performance：

1.Dielectric Strength: 1000V AC/1 Minute.
2.Contact resistance: 100 m Ohm MAX.
3.Insulation Resistance: 500VDC,100M Ohm Min.
Rateing and Application Wire:
1.Rated Volatage: 30V MAX
2.Rated Current: 5Amps,
Wire Insulation 0.D:∅1.2~∅2.6
3.Ambient Temperature Range: -40°C ~ +85°C
Notes:
1.Housing Material: PA66 Plus Fiber 15%,Color:Black
2.The Pin 4&PIN 5 Are 10.0mm High
Out of The Plastic,
3.Terminal Materi Brass Gilded
4.General Tolerance: ±0.3mm
5.Supporting Terminal Material

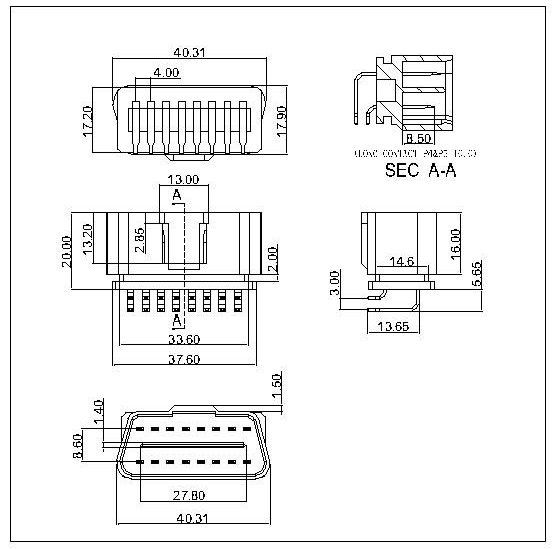

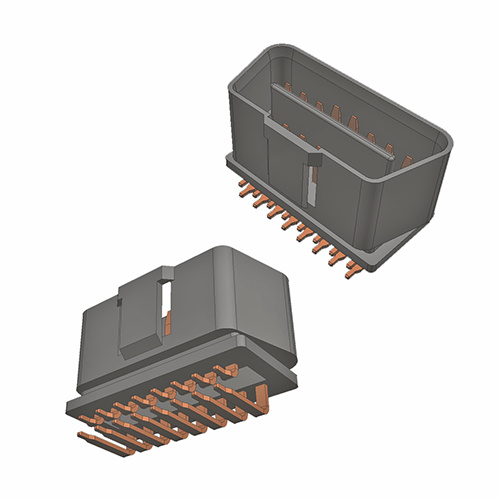

OBD-A-16-G0-A-F-X-PG002-B OBD 16P Male Angle Reverse 12V Type 14.6MM

OBD-A-16-G0-A-F-X-PG002-B OBD 16P Male Angle Reverse 12V Type 14.6MM
