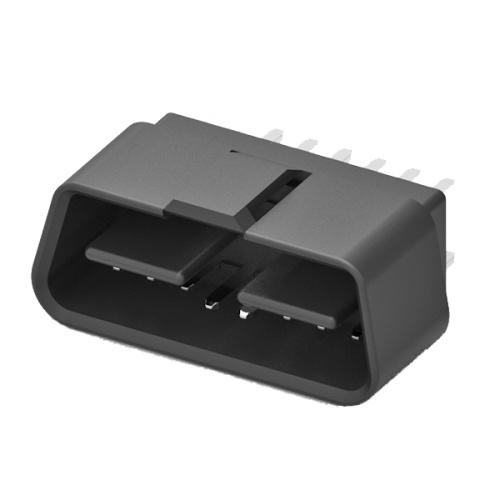

OBD 16P Male Straight Solder 24V Type

Electrical Performance：
1.Dielectric Strength:1000V AC/1 Minute.
2.Contact resistance:100 m Ohm MAX.
3.Insulation Resistance:500VDC,100M Ohm Min.
Rateing and Application Wire:
1.Rated Volatage: 30V MAX
2.Rated Current: 5Amps,Wire Insulation 0.D:∅1.2~∅2.6
3.Ambient Temperature Range: -40°C ~ +85°C
Notes:
1.Housing Material: PA66 Plus fiber 15, Color:Black

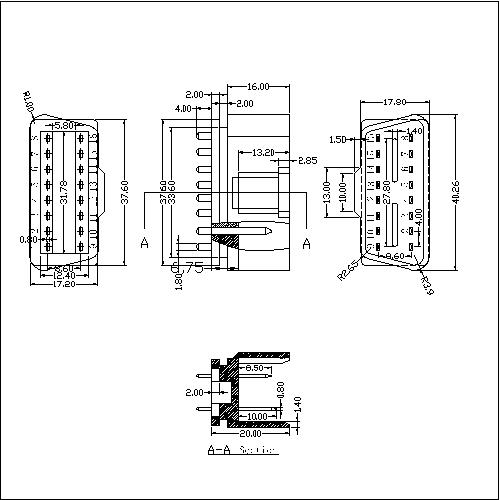

2.The Pin 4&PIN 5  Are 10.0mm High Out of The Plastic,
  All of rest pins are8.5mm.The Pin 0.8*1.8*19.25mm
3.Needle Material: Brass ,Under plated:Gold
4.Terminal Tolerance: ±0.3mm
5.Electroplating:Gold-Plated
5.Supporting Terminal Material Number:C-OBD-MT-001
