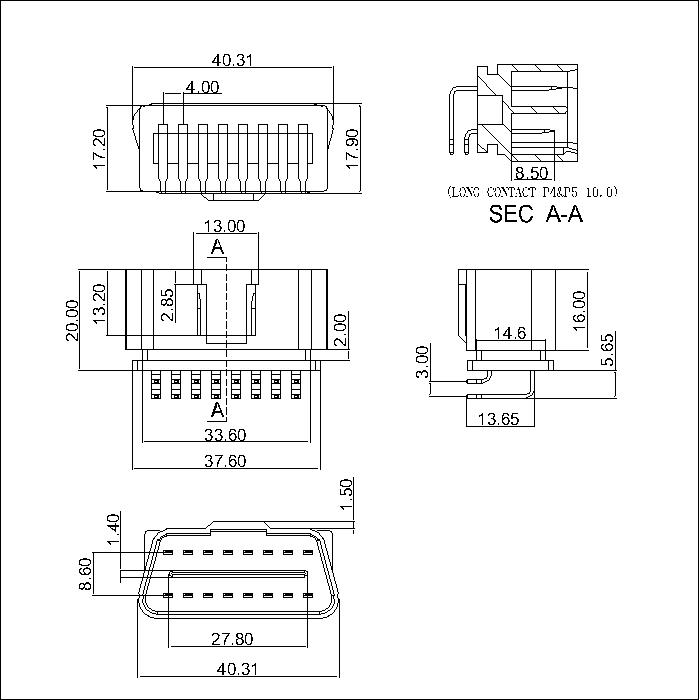

OBD 16P Male Angle Reverse 24V Type 14.6MM

OBD 16P Male Angle Reverse 24V Type 14.6MM

OBD-A-16-G0-A-F-X-PG002-B
Electrical Performance：
1.Dielectric Strength:1000V AC/1 Minute.
2.Contact resistance:100 m Ohm MAX.
3.Insulation Resistance:500VDC,100M Ohm Min.
Rateing and Application Wire:
1.Rated Volatage: 30V MAX
2.Rated Current: 5Amps,Wire Insulation 0.D:∅1.2~∅2.6
3.Ambient Temperature Range: -40°C ~ +85°C
Notes:
1.Housing Material: PA66 Plus Fiber 15%,Color:Black
2.The Pin 4&PIN 5  Are 10.0mm High Out of The Plastic,
3.Terminal Materi Brass Gilded
4.General Tolerance: ±0.3mm
5.Supporting Terminal Material
  Number:C-OBD-MT-001
