Modular Jack 2USB3.0 Shielded With LED R/A

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	ShenZhen,ShenZhen

Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

Modular Jack RJ45 section

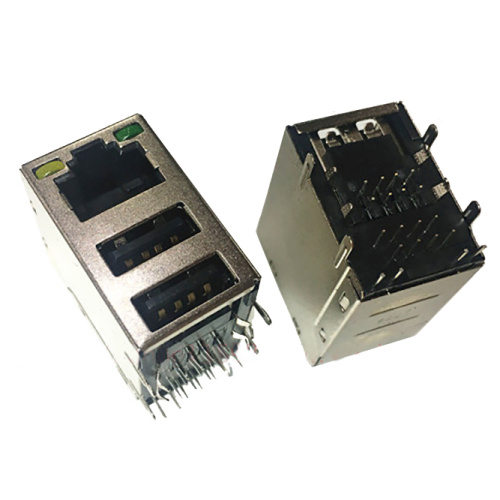

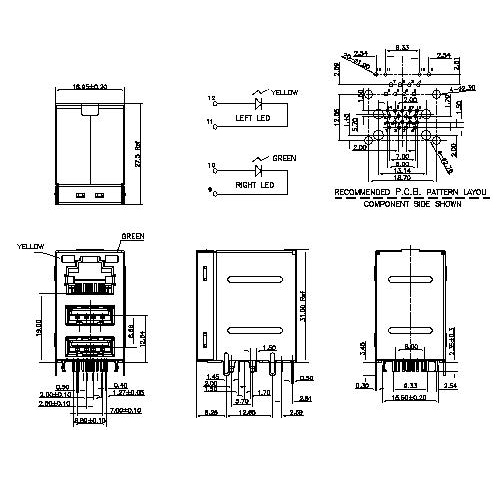

Product name：ATRJ6023-8P8C-X-D-A-B Modular Jack+2USB3.0 Shielded With LED R/A Through Hole Type

SPECIFICATIONS:
1.Electronical Characteristics:
1.1 Voltage Rating:1000 VAC 1 Minute
1.2 Current Rating:1.5 AMP.30V AC
1.3 Contact Resistance:30 Milliohms Maximum
1.4 Insulation Resistance:1000 Megohms Min
1.5 Dielectric Withstanding Voltage:500V AC
2.Mechanical Characteristics:
2.1 Operating Life:750 Cycles Minimum
2.2 PCB Retention Pre-solder:1 LBS Minimum
2.3 PCB Retention Post-solder:10 LBS Minimum
3.Material & Plating
3.1 Housing Material:High Temp.Plastic UL94V-0
3.2 Contact Material:Copper Alloy
3.3 Shell:Steel
3.4 Plating:Gold Plating Over Nickel
4.Environmental:
4.1 Storage:-55°To +85°
4.2 Operation:-55°To +85°
4.3 Wave Soldering Temperature:230°To 250°
(3-5 Seconds)
